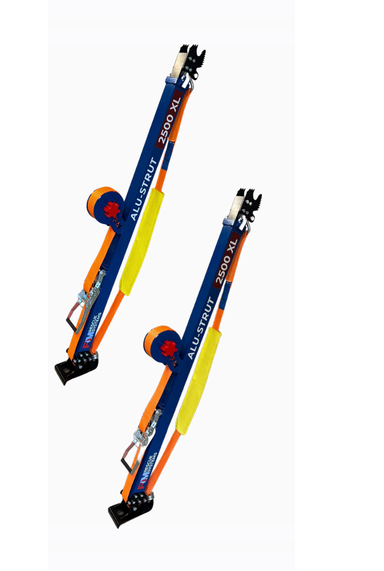

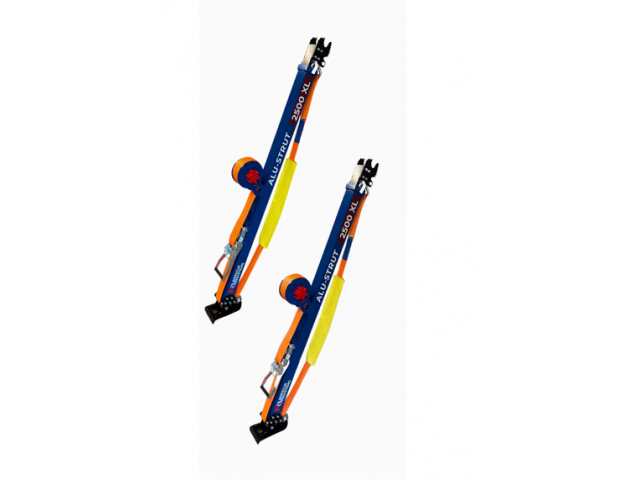

Rescue Strut ALU-STRUT 2500 XL
KEY FEATURES
Telescopic height adjustment
The telescopic height adjustment from 1,500 mm to 2,330 mm allows the strut to adapt to a wide range of stabilisation scenarios and vehicle configurations.
Precise 40 mm adjustment increments
The adjustment system operates in 40 mm increments, providing precise positioning and secure load support during rescue operations.
Powder-coated housing
The powder-coated housing improves corrosion resistance and helps maintain durability and reliability in harsh weather conditions and demanding operational environments.

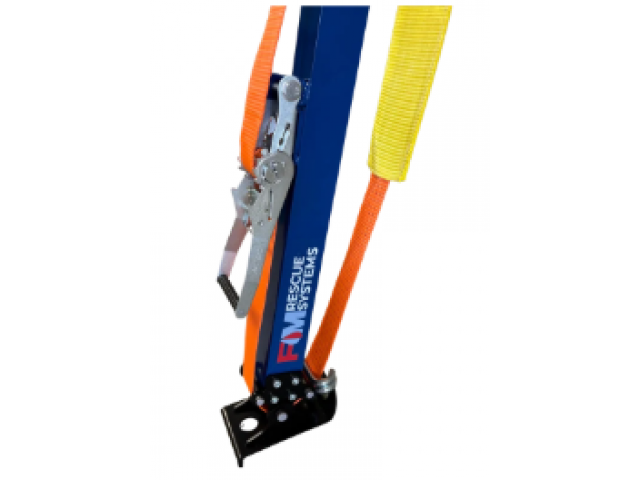

Protected ratchet adjustment mechanism
The protected spring-and-roller ratchet mechanism enables quick height adjustment while reducing the risk of dirt and contamination entering the system.
Integrated 7 m lashing strap
The integrated 7 m lashing strap with a loop capacity of up to 5 tonnes provides additional stabilisation and load-securing capability without the need for separate equipment.
Controlled strap retractor
The strap retractor allows safe and controlled deployment, preventing uncontrolled unwinding and improving operational safety.

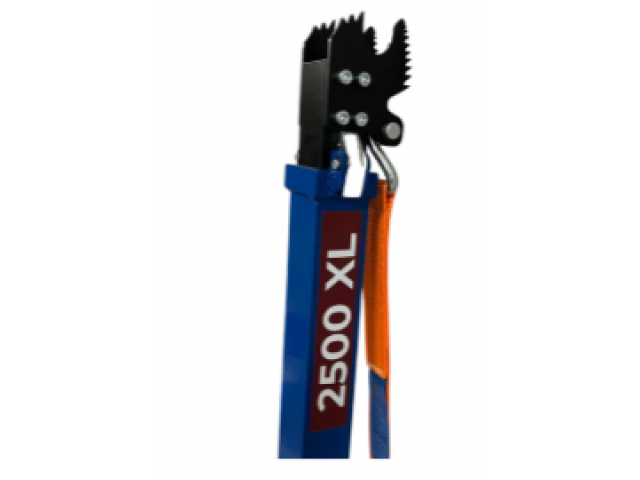

Replaceable head system
The replaceable head allows the strut to be adapted to different objects, surfaces and stabilisation requirements.
Universal anchorable foot
The universal foot ensures stability on different surfaces and allows secure anchoring whenever additional fixation is required.
- Pictures
- Technical specification
Parameter Value Product Name Rescue Strut ALU-STRUT 2500 XL Type Telescopic Stabilisation Strut Adjustment Range 1,500 – 2,330 mm Weight 11,6 kg Adjustment Increment 40 mm Load Capacity 2,500 kg Integrated Strap Length 7 m Strap Loop Capacity 5 t Adjustment Mechanism Spring-and-Roller Ratchet System Corrosion Protection Powder-Coated Housing Head Type Replaceable Foot Type Universal, Anchorable Construction Material Aluminium Transport Hook Attachment Yes
