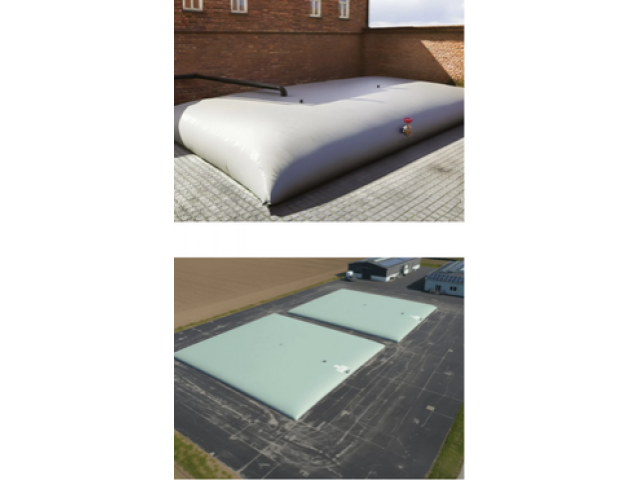

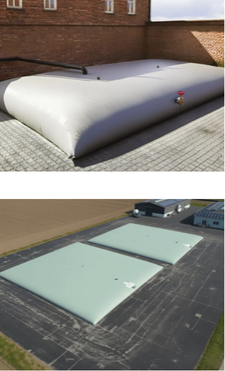

Stormwater Retention Pillow Tank

Name: FIRE-MAX Sp. z o.o.
Address: al. Jerozolimskie 224, Warszawa, Mazowieckie, 02-495, PL
Telephone: +48 22 578 84 00

Technical specification

Specification	Value
Product Type	Flexible stormwater retention pillow tank
Model	Waterbase R
Material	Multi layer technical fabric with PVC coating and polyester mesh
Capacity Range	10 m³ to 250 m³ (standard models)
Installation Time	Up to 30 minutes
Installation Surface	Flat and level ground surface
Temperature Resistance	Down to minus 30°C
UV Resistance	Yes protected by special coating

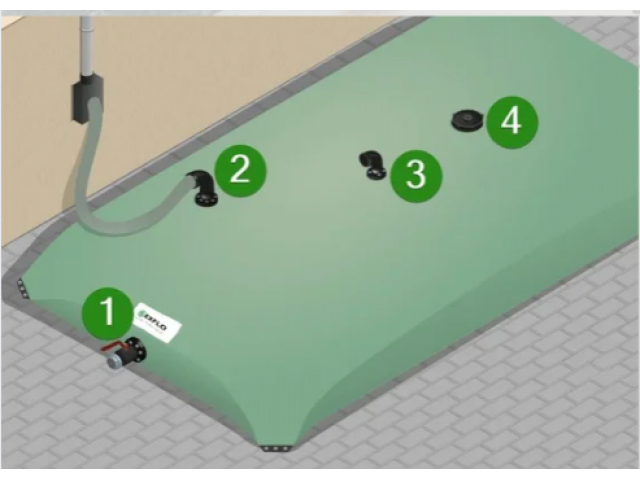

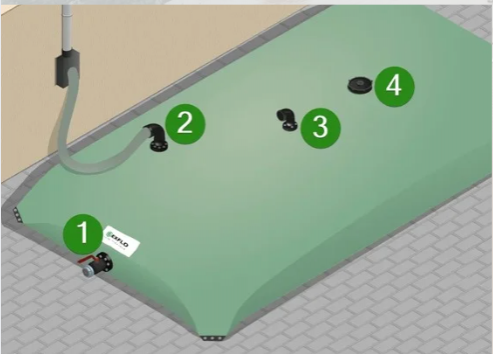

Filling Connection	DN80 flange with 90° elbow and Storz 75 coupling
Discharge Connection	DN50 with valve 2 inch and Storz 52 coupling
Venting System	Air vent with overflow protection
Inspection Opening	Flange approximately 146 mm with cap
Additional Connections	Available on request
Construction	High frequency welded seams
Warranty	10 years
