FMBOT 12000

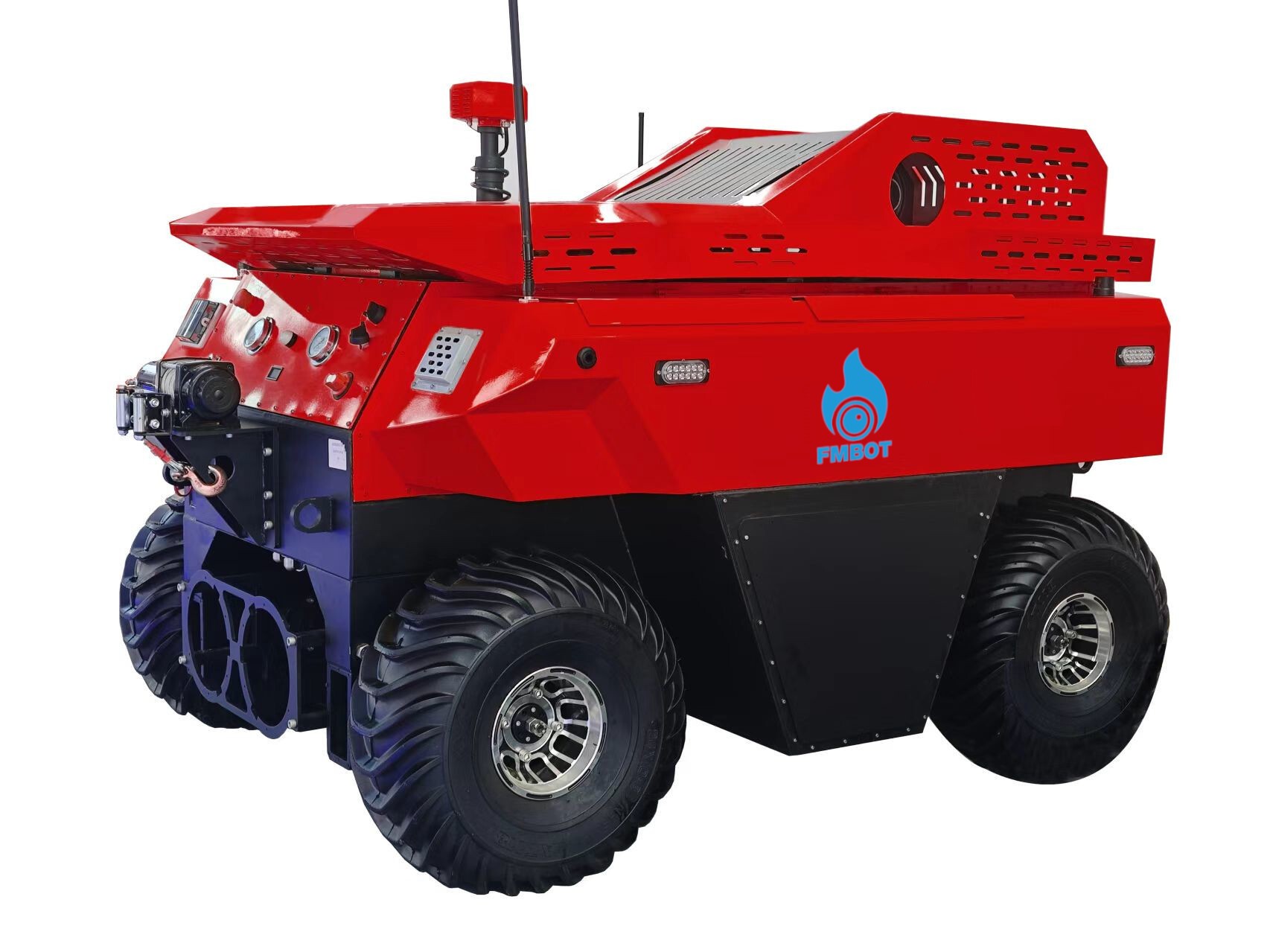

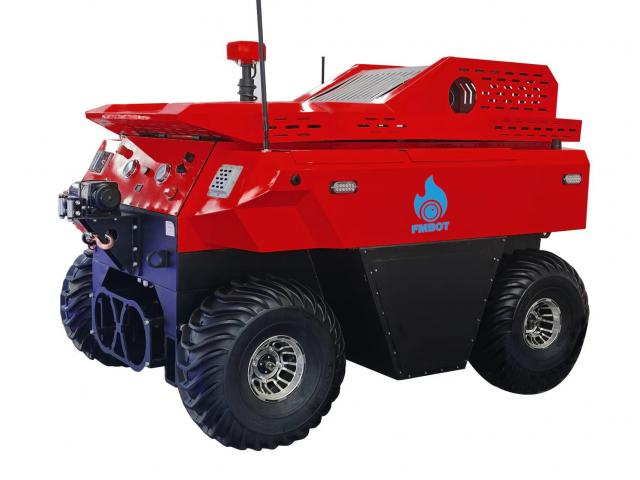

The FMBOT 12000 is a self-propelled amphibious pumping robot designed for high-capacity flood response, large-scale dewatering and long-distance water transfer. Built on a hydraulically driven all-terrain chassis, it can move independently on land and water, enter flooded or hard-to-access areas and operate without an external power supply or separate floating platform. With a maximum pumping capacity of 12,000 L/min, it supports rapid water removal from streets, culverts, underground facilities and other flooded locations while reducing the need for personnel to enter hazardous areas.
Key Features
- High-capacity pumping system delivering up to 12,000 L/min (720 m³/h) for rapid floodwater removal and large-scale drainage operations.

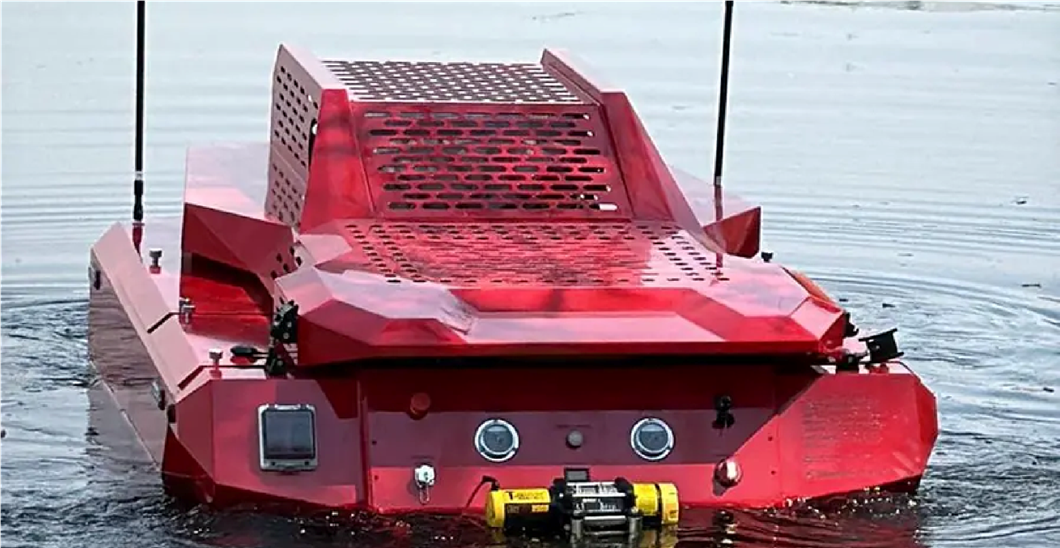

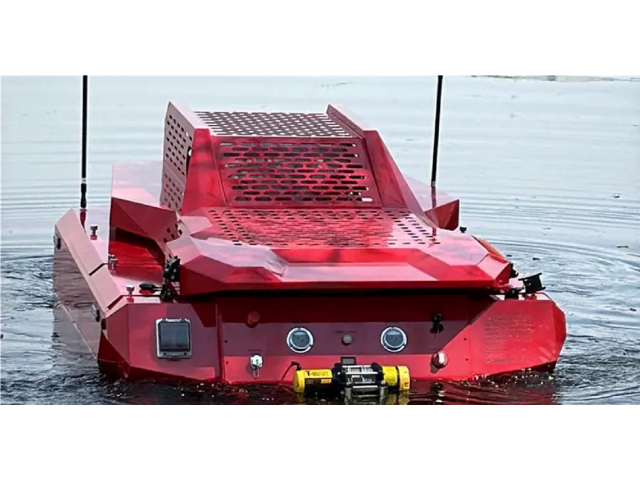

- Self-propelled amphibious platform capable of moving independently on land and water and entering or leaving flooded areas without a separate floating platform.
- Hydraulically driven all-terrain chassis with on-the-spot turning capability for operation on mud, sand, riverbanks and other difficult terrain.
- Remote-controlled operation with a communication range of at least 300 m and up to 500 m in open areas, depending on terrain and environmental conditions.
- Long-distance water transfer over at least 300 m, depending on hose configuration, operating conditions and required pumping performance.
- Independent 35 hp engine with a 50 L fuel tank, providing approximately five hours of continuous operation and allowing refuelling during use.
- Double DN200 water inlet and outlet connections designed for high-volume pumping and efficient transfer of dirty water containing small solid particles.
- Integrated electric recovery winch with approximately 1,600 kgf pulling force and wired or wireless control.
- Standard auxiliary hydraulic output rated at 140 bar and 40 L/min for powering compatible external hydraulic equipment.
- Optional powered hose-reel cart for the transport, deployment and retrieval of up to approximately 150–200 m of DN200 hose, depending on the selected configuration.
- Pictures
- Technical specification
Parameter Specification Max. flow rate (pump) 720 m³/h (200 L/s / 12,000 L/min) Maximum lift / range 6 m Water inlet connections DN200 × 2 (internal diameter ≥ 185 mm) Water outlet connections DN200 × 2 (2 × 8-inch interfaces) Drainage / discharge distance ≥ 300 m Water supply distance (single unit) ≥ 300 m (multi-robot relay: several kilometres – configuration dependent) Engine power 35 hp (approx. 26 kW) Fuel tank capacity 50 L Endurance (typical) Approx. 5 h continuous (refuel during operation possible) Drive / chassis Hydraulic-driven all-terrain chassis Travel speed (land) Max 7.2 km/h Travel speed (water) 1 km/h Communication range ≥ 300 m (≥ 500 m in open areas) Dimensions (L × W × H) 2180 × 1480 × 1350 mm Operating weight 770 kg (including engine oil, hydraulic oil and fuel) Water inlet type (double suction) Lift-type inlet; quick replacement with 90° bent inlet for low water level suction Hydraulic auxiliary output Standard hydraulic output interface: 14 MPa (140 bar), 40 L/min Traction winch Electric winch; 3,500 lbf (approx. 1,600 kgf) pulling force; wireless/wired controller Hose reel cart (optional) 4 reels; typically 2 × 50 m + 2 × 25 m DN200 (other configurations possible); up to 150–200 m total hose length (specification dependent) Hose reel cart – power 48 V, 32 Ah battery; speed 5 km/h; range 20 km Hose reel cart – dimensions / weight 1800 × 1000 × 1400 mm; 580 kg (incl. 150 m thickened hose)
- Downloads
