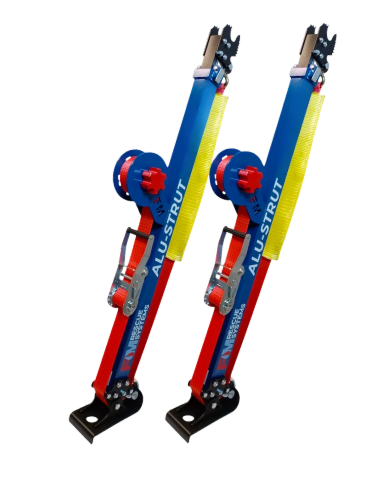

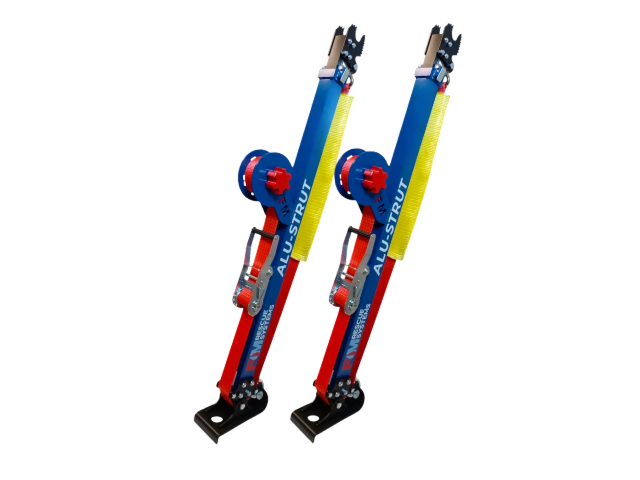

Rescue Strut ALU-STRUT 1500

Light & powerful struts for stabilisation of the rescue scene.

KEY FEATURES

Lightweight aluminium construction
The lightweight aluminium construction reduces operator fatigue and enables faster deployment at the rescue scene.
Corrosion-resistant design
The corrosion-resistant design ensures durability in harsh and demanding operational environments.
Telescopic height adjustment
The telescopic height adjustment allows precise and rapid adaptation to various stabilisation scenarios.
Spring-loaded ratchet mechanism
The spring-loaded ratchet mechanism enables quick and secure positioning while protecting internal components from contamination.
Integrated 5-ton tensioning strap
The integrated 5-ton tensioning strap enhances stabilisation and provides additional anchoring capability.
Ergonomic strap retractor
The ergonomic strap retractor allows smooth and controlled operation, even when wearing protective gloves.
Protection against uncontrolled deployment
The safety system prevents accidental strap release and improves operational safety.
Interchangeable head system
The interchangeable head system supports flexible configurations for complex rescue situations.
Universal base with anchoring option
The universal base with an anchoring option ensures stability on different surfaces and terrains.
Transport hook interface
The transport hook interface facilitates easier handling and equipment management during operations.
Dual-strut set configuration
The dual-strut set configuration enables effective multi-point stabilisation.

  • Pictures
  • Technical specification
    • Parameter Value
      Length (per strut) 1160 – 1970 mm
      Adjustment increment 4 cm
      Load capacity 1500 kg
      Strap length 5 m
      Strap loop capacity 5 t
      Weight approx. 9 kg



  • Downloads

More in category Rescue Strut ALU-STRUT:

Rescue Strut ALU-STRUT 2500 XL

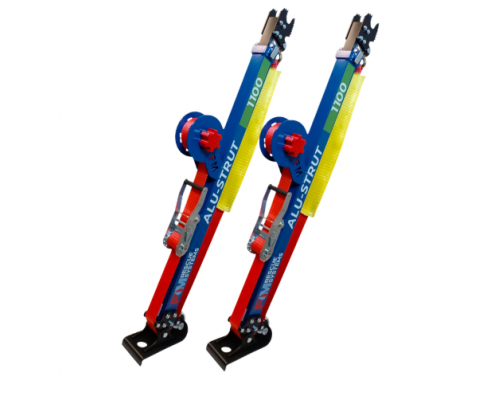

Rescue Strut ALU-STRUT 1100
