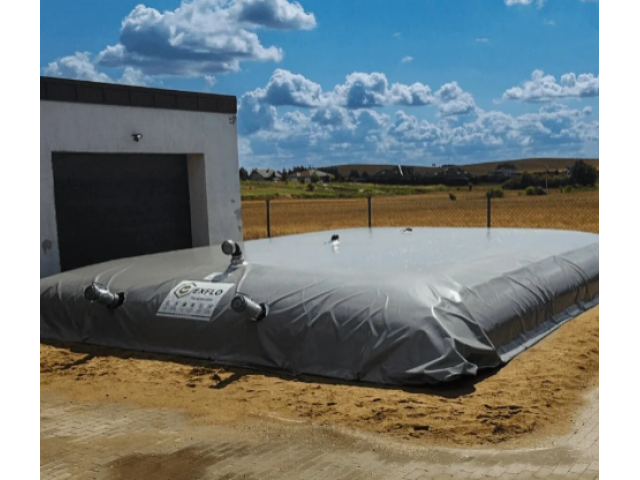

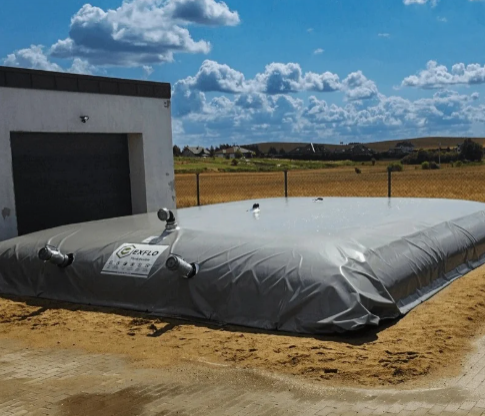

Fire Protection Pillow Tank
Fire Protection Pillow Tanks are flexible water storage systems designed to provide a reliable and compliant water reserve for firefighting applications. Manufactured from high-strength technical fabric with PVC coating, these tanks offer a durable and mobile alternative to traditional fixed installations.

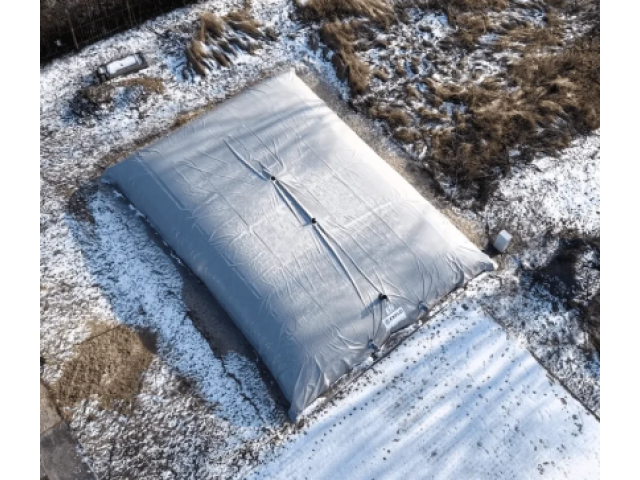

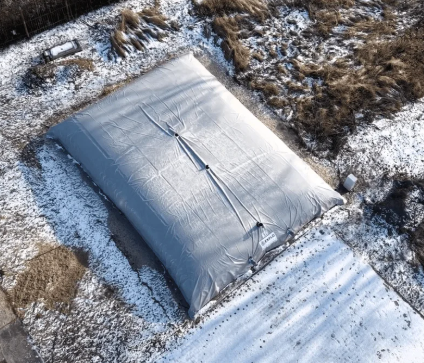

Designed in accordance with fire protection requirements, the system supports compliance with PN-B-02857:2017-04 standards and is approved for firefighting use with CNBOP certification. The tanks can operate year-round, including in harsh winter conditions, supported by an integrated heating system that prevents water from freezing. Their lightweight, foldable construction allows rapid deployment without permanent ground connection or complex construction works, making them suitable for both permanent and temporary fire protection infrastructure.
- Pictures
- Technical specification
Specification Value Product Type Flexible fire water storage tank (pillow type) Material Polyester fabric coated with PVC Fabric Weight 1300 g/m² Manufacturing Technology High-frequency (HF) welding Temperature Resistance Down to -30°C UV Resistance Yes (protective coating) Installation Time Approx. 30 minutes Foundation Requirement Flat, level surface (e.g. sand bedding) Mobility Fully foldable and transportable Heating System Electric heating mats with sensors Certification CNBOP approval No. 4983/2023 Compliance Standard PN-B-02857:2017-04 Available Capacities 50 m³ – 300 m³ (standard sizes) Custom Sizes Available (on request) Warranty 2 years (extendable up to 10 years with inspections)
- Downloads
