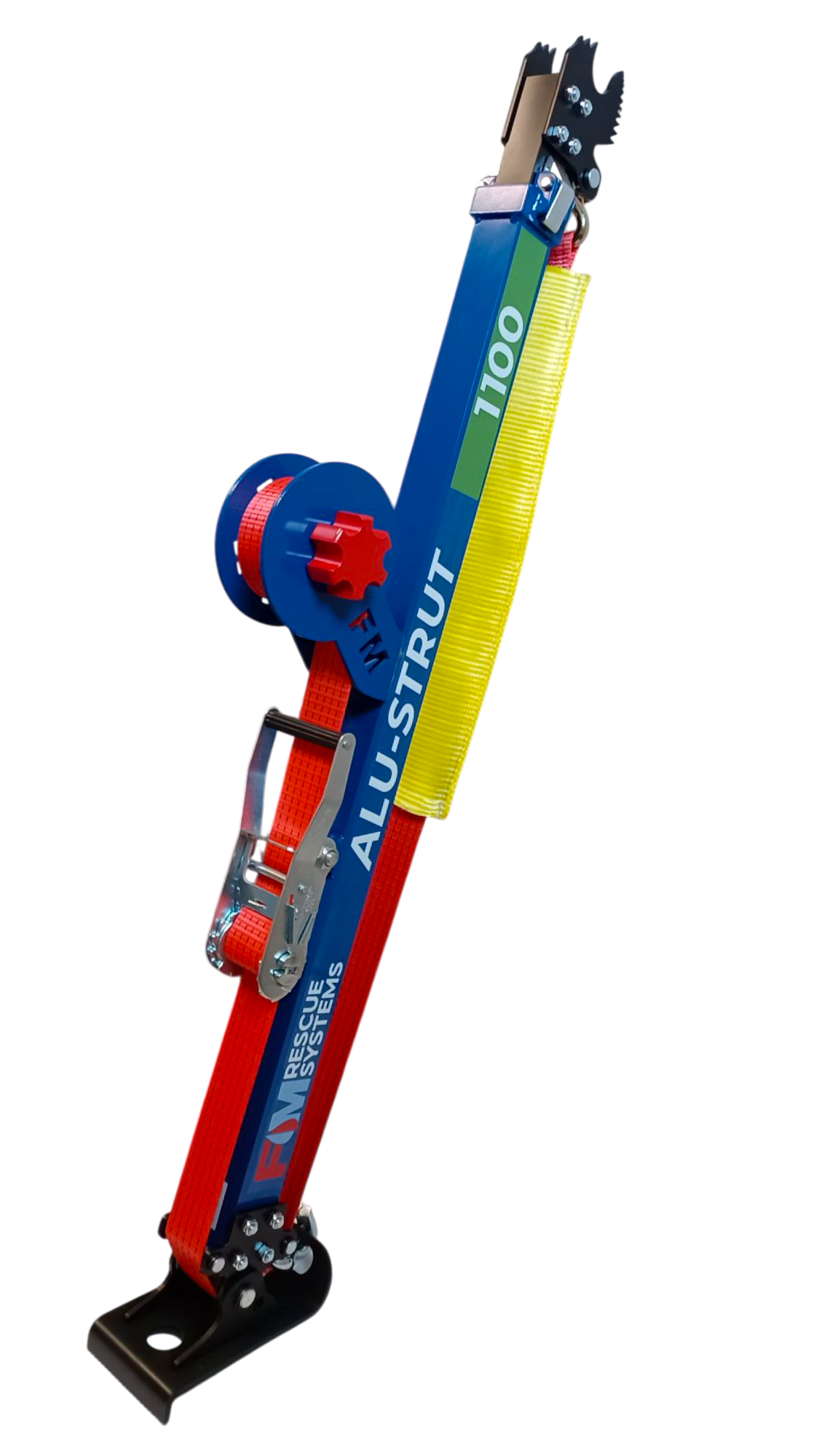

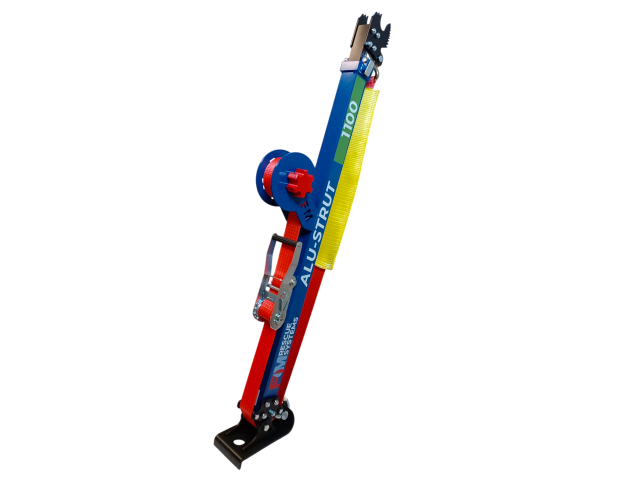

Rescue Strut ALU-STRUT 1100
KEY FEATURES
Lightweight aluminium construction
Made of lightweight aluminium alloy, the struts reduce operator fatigue and allow faster and easier deployment at the rescue scene.
Corrosion-resistant design
The corrosion-resistant construction ensures reliable operation in harsh weather conditions and demanding rescue environments.
Easy adjustable height
Thanks to the telescopic adjustment system, the strut can be quickly and precisely adapted to different stabilisation scenarios.
Spring-loaded ratchet mechanism
The spring-loaded ratchet mechanism enables fast and secure positioning while protecting internal components against dirt and contamination.
Integrated 5-ton tensioning strap
The integrated tensioning strap with a capacity of up to 5 tonnes provides additional anchoring and supports secure stabilisation of the object.
Ergonomic strap retractor
The ergonomic retraction mechanism allows smooth and controlled strap operation, even when wearing protective gloves.
Protection against uncontrolled strap release
A dedicated safety system prevents accidental strap deployment or release, improving operational safety.
Interchangeable head system
Interchangeable heads allow the strut to be adapted to different objects, surfaces and complex rescue situations.
Universal base with anchoring option
The universal base ensures stability on various surfaces and terrains. An additional anchoring point allows the strut to be securely fixed when required.
Transport hook interface
A dedicated transport hook makes the strut easier to carry, handle and organise during transport and rescue operations.
Dual-strut set configuration
The set includes two struts, enabling effective multi-point stabilisation of vehicles, structures and other unstable objects.
- Pictures
- Technical specification
Length
1160 mm to 1970 mm
Adjustment increment
40 mm
Max. load
1100 kg per strut
Belt Length
5 m
Belt loop capacity
5 t
Weight
approx. 8.4 kg
