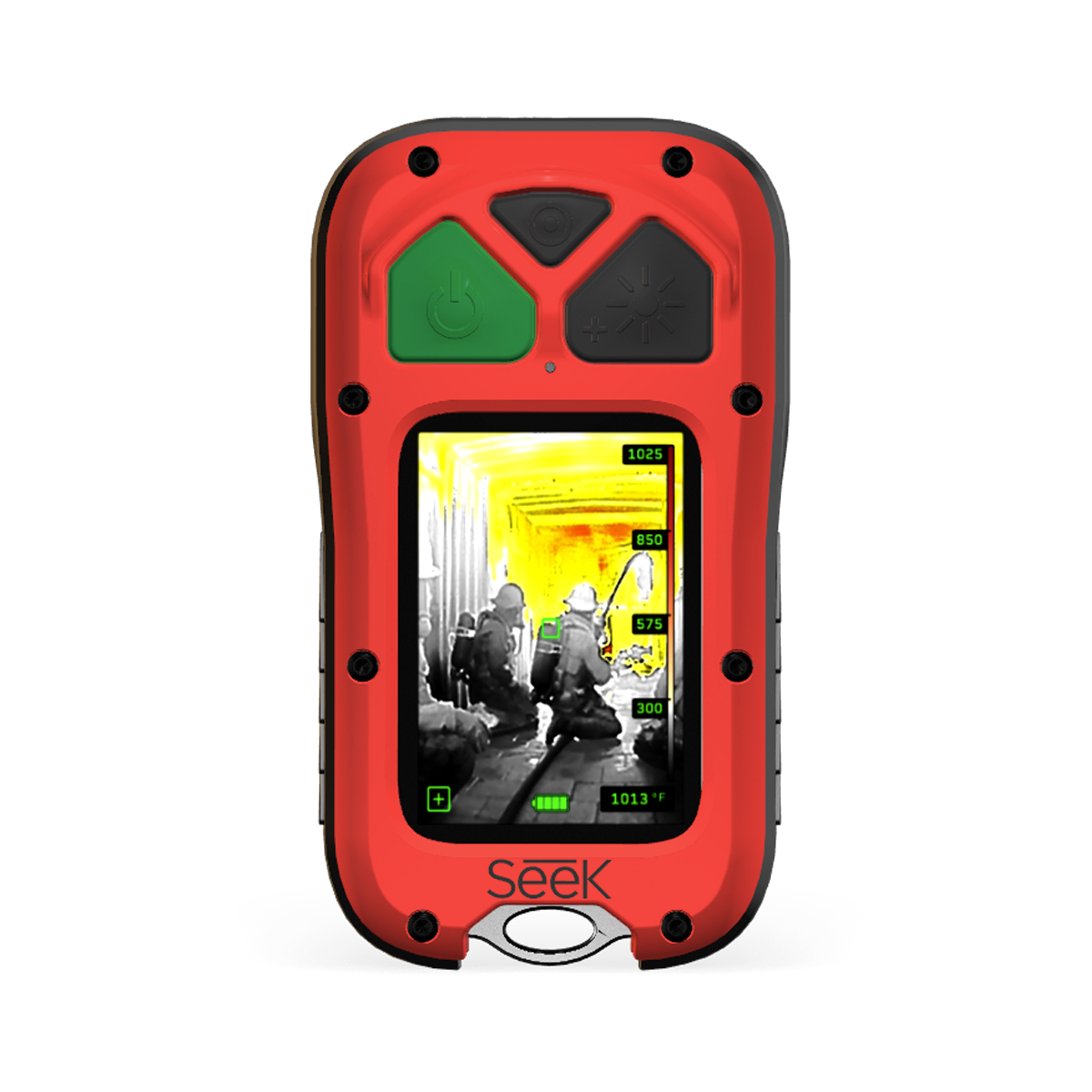

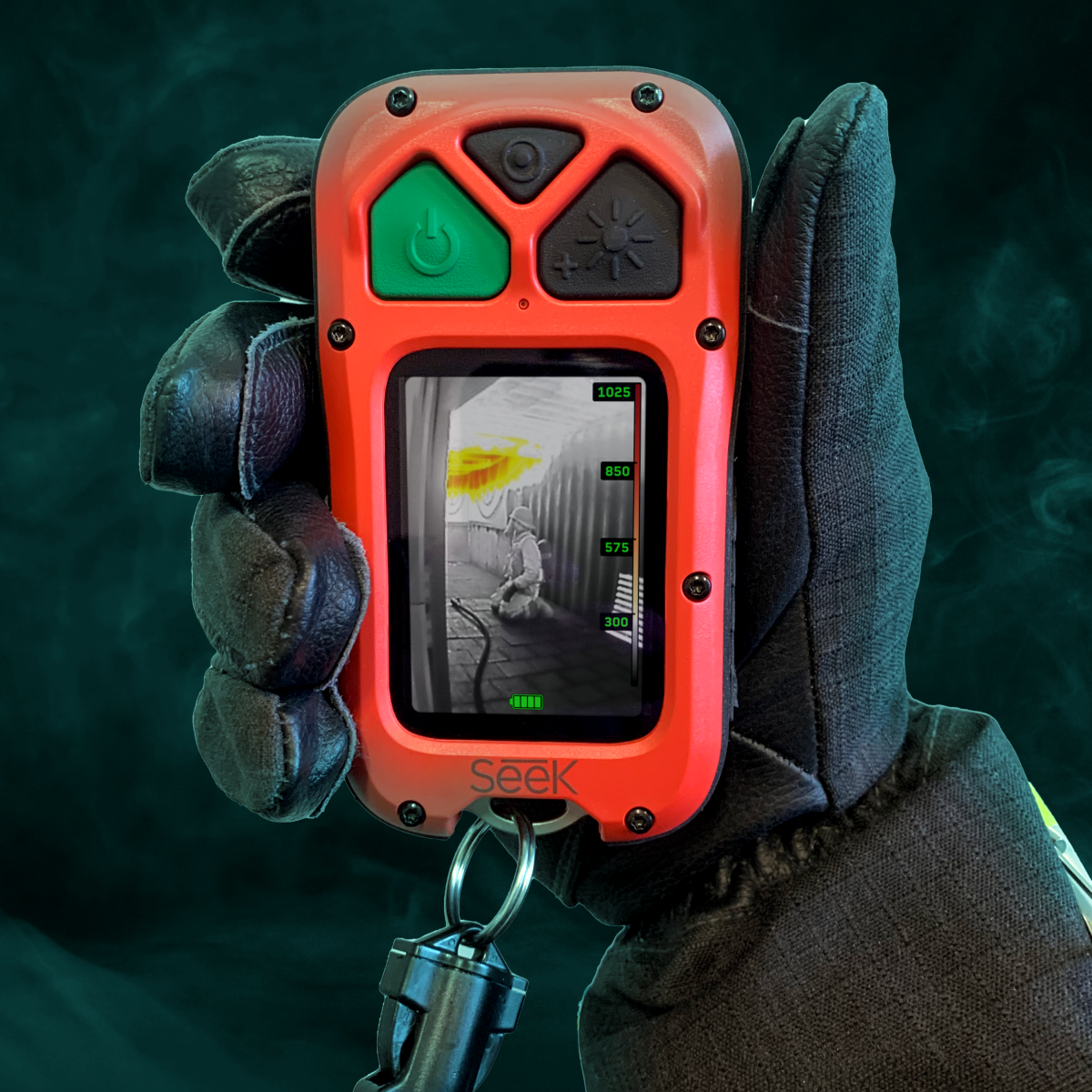

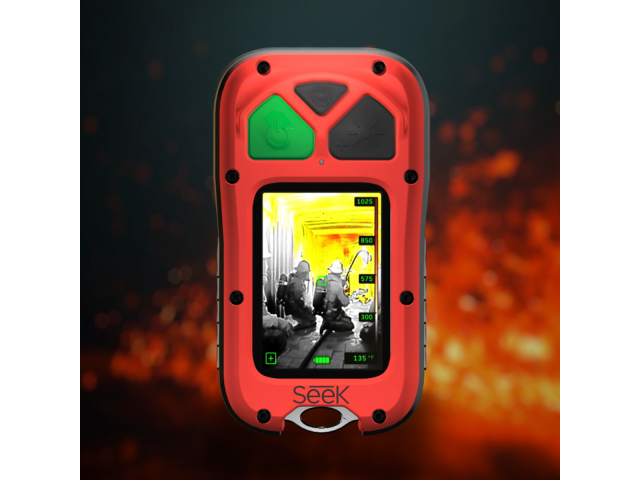

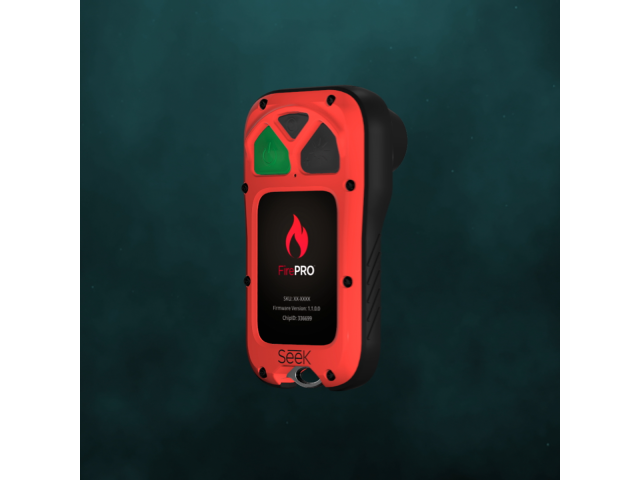

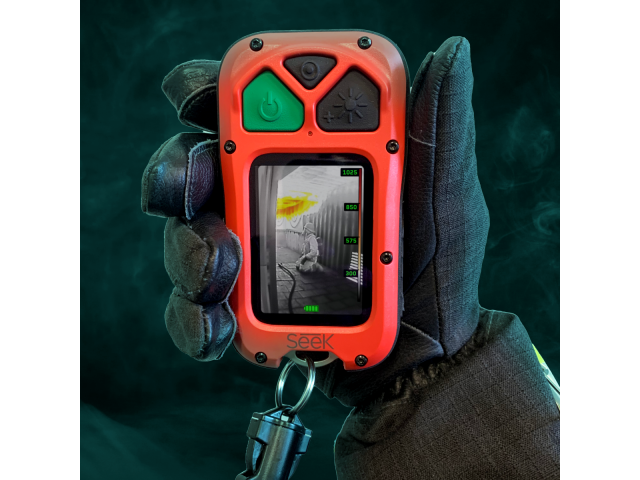

FirePRO 300

Your Lifeline to Self-Rescue

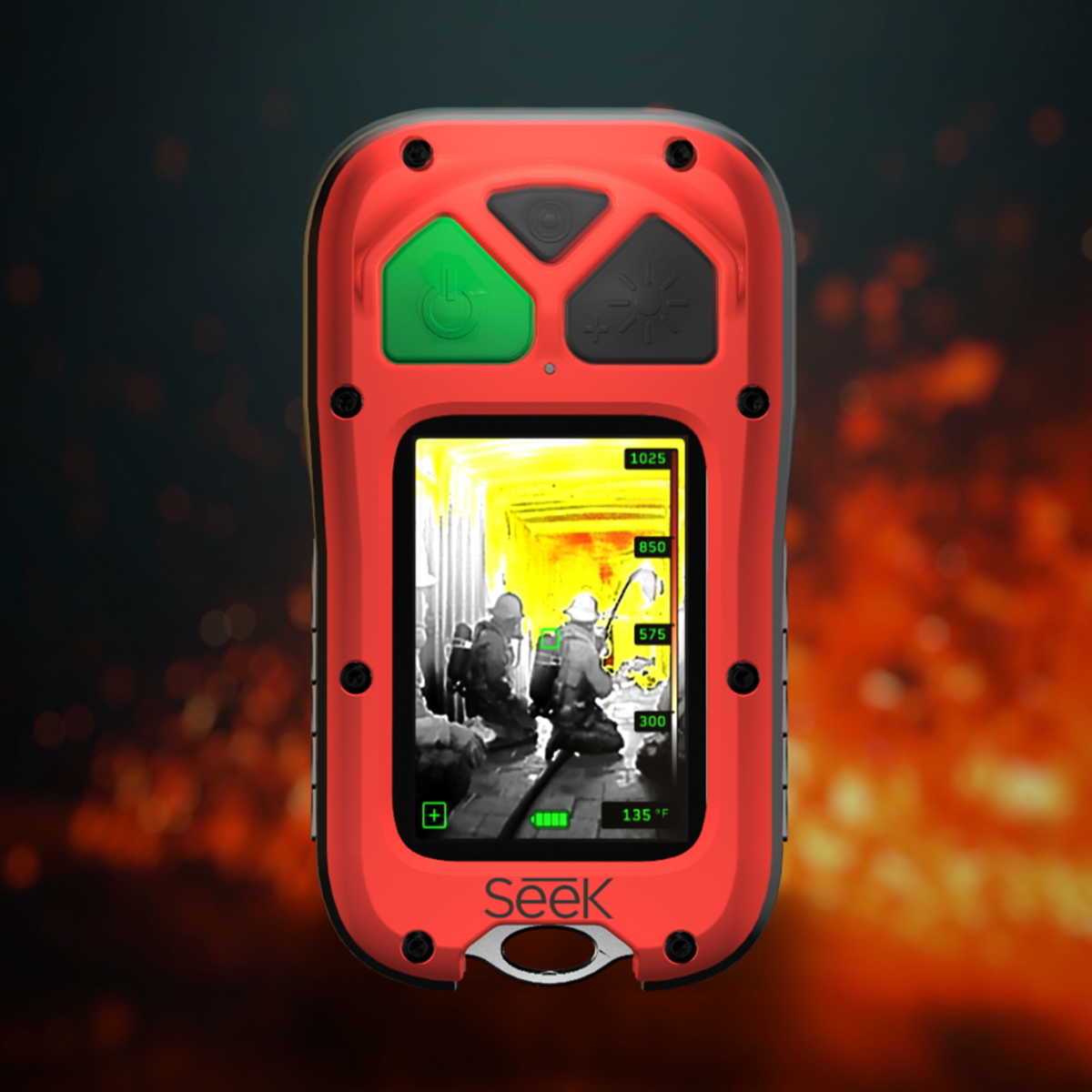

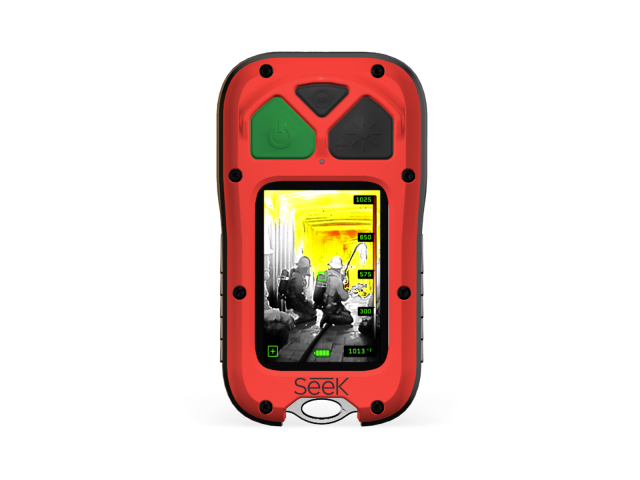

FirePRO 300 - your lifeline to self-rescue. It is the best innovation in personal thermal imaging. With FirePRO 300, you can equip every firefighter with an affordable and lightweight thermal camera to enhance situational awareness and improve firefighter safety.

Featuring our high resolution 320 x 240 sensor, FirePRO 300 provides firefighters with the ability to regain orientation in low visibility or blackout conditions. Additionally, Seek’s game-changing Mixed Gain technology allows firefighters to see detail in the hottest and coolest regions of the scene at the same time without freezing and switching modes. Investing in a personal thermal imaging camera is an investment in your personal safety.

KEY FEATURES

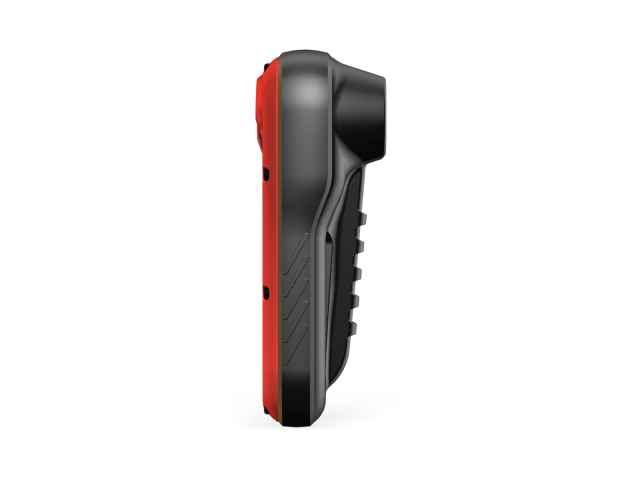

Made to endure and designed to be lightweight
Weighs just 325 grams and is IP67 waterproof with 2 meter drop durability
Mixed Gain with SV1 Image Optimisation
See the hottest and coolest regions of the scene simultaneously without freezing or switching gain modes. Thermal picture details enhanced with SV1 system
Fast Frame Rate, High-Resolution Sensor
320 x 240 sensor size with 76,800 individual temperature pixels refresh 25 times a second
Up to 6 hours of use on a single charge
Long lasting rechargeable battery ensures FirePRO 300 is always ready

BENEFITS

Improve situational awareness
Visualise hazards invisible to the naked eye and navigate safely in difficult conditions

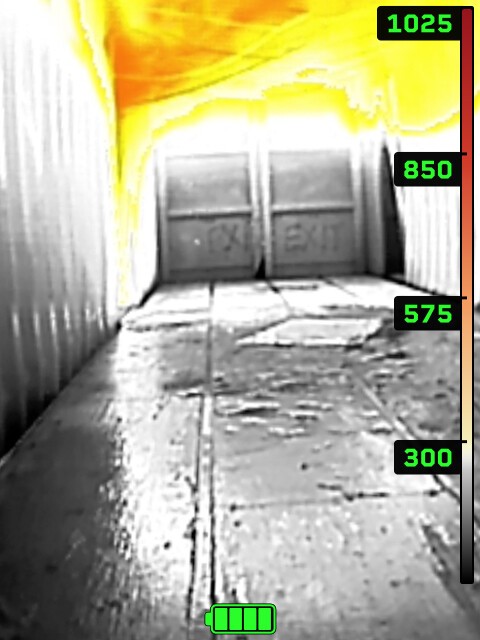

Find your way out in zero visibility conditions
FirePRO 300 is your lifeline to regain orientation and reduce maydays
Execute the mission faster
Quickly locate victims and hot spots when every second counts
Reduce the potential for rekindles
Multiple firefighters can use Survey Mode during overhaul
Redundancy
Serves as a redundant backup to the team’s decision making TIC

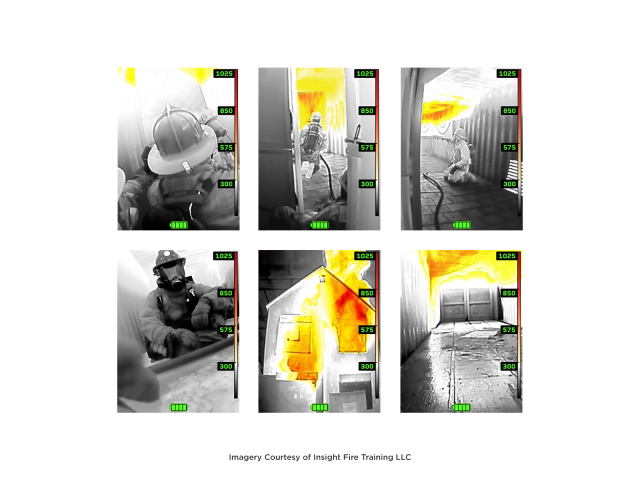

IMAGING MODES

All modes use Mixed Gain with SV1 Image Optimisation

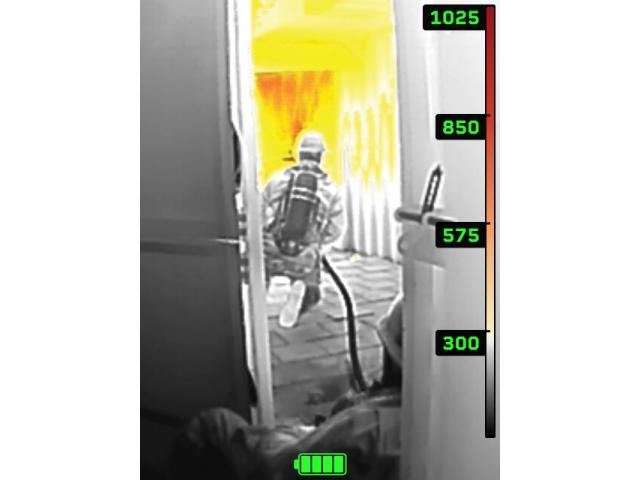

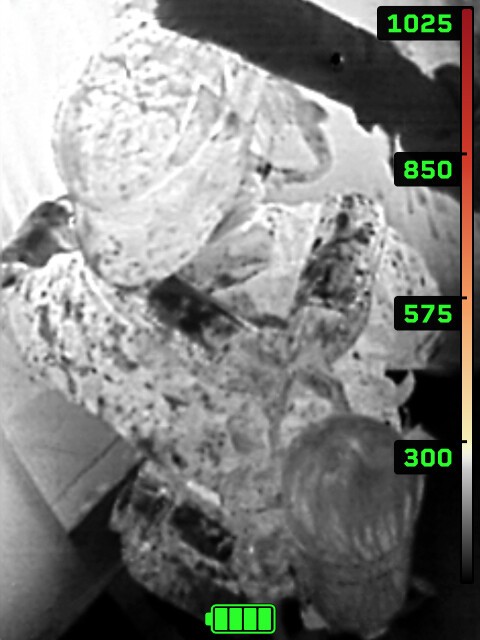

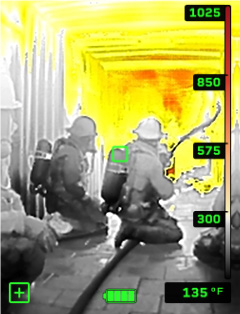

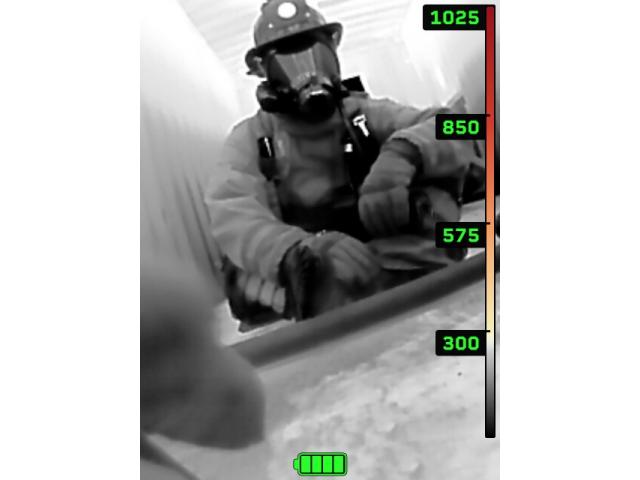

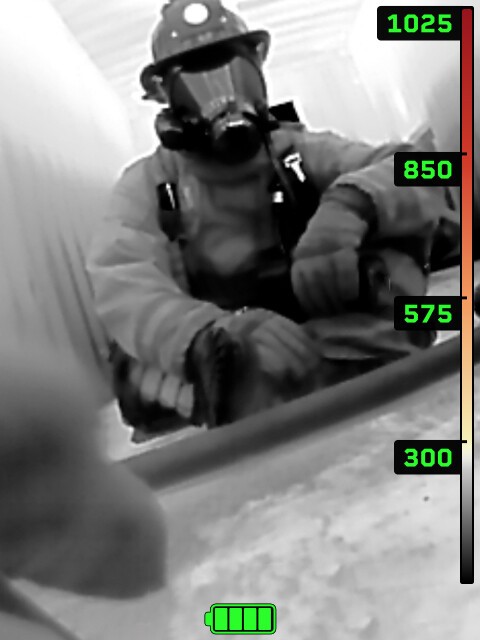

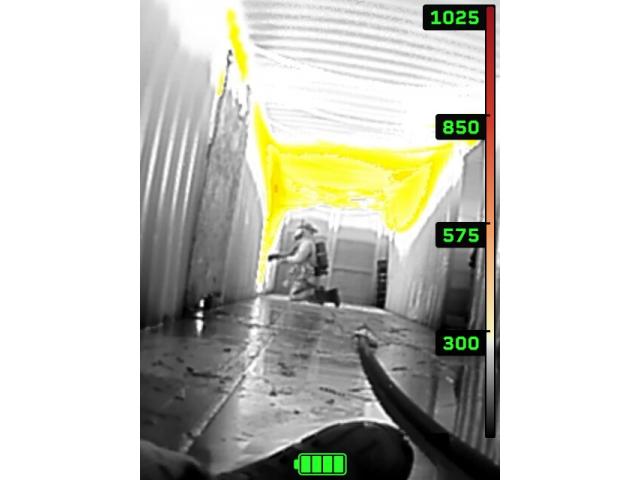

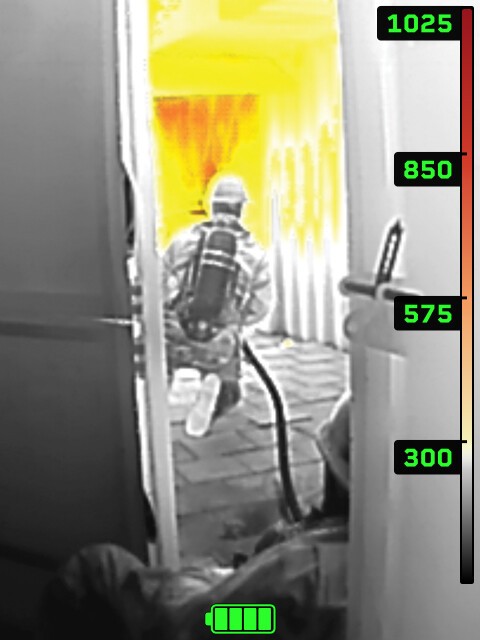

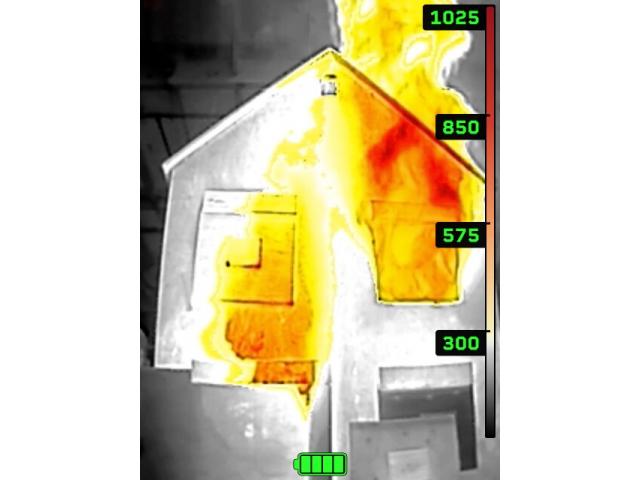

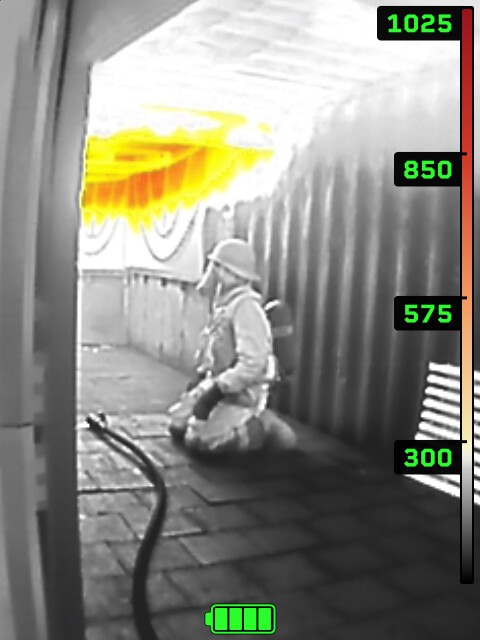

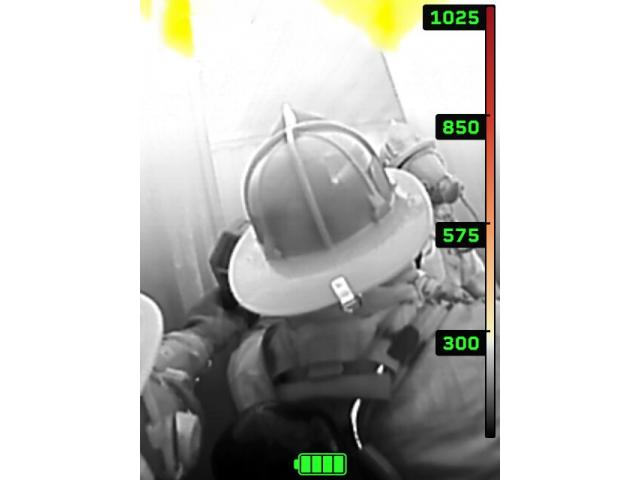

FIRE MODE

using TI BASIC

without Spot Temp

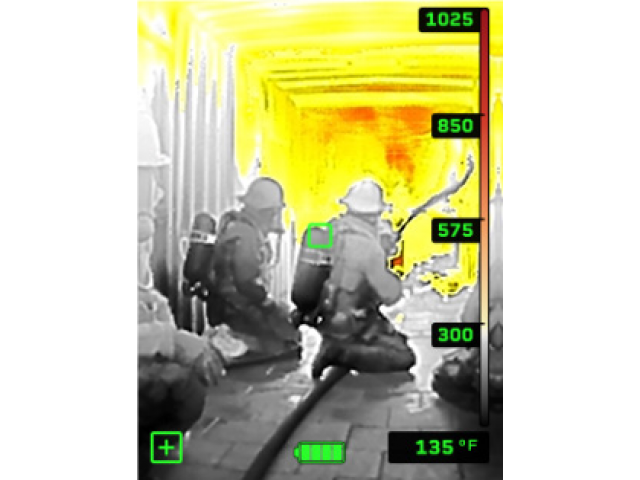

FIRE MODE

using TI BASIC+

with Spot Temp

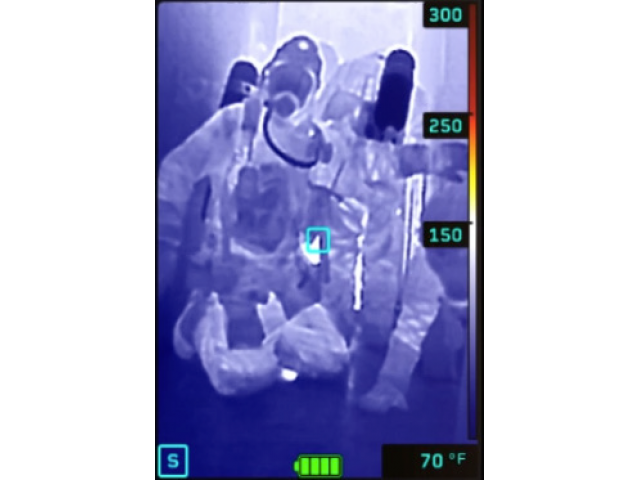

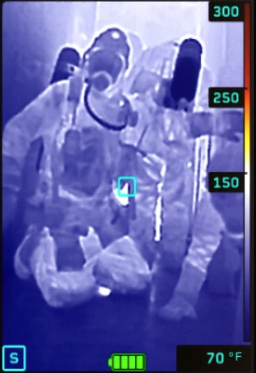

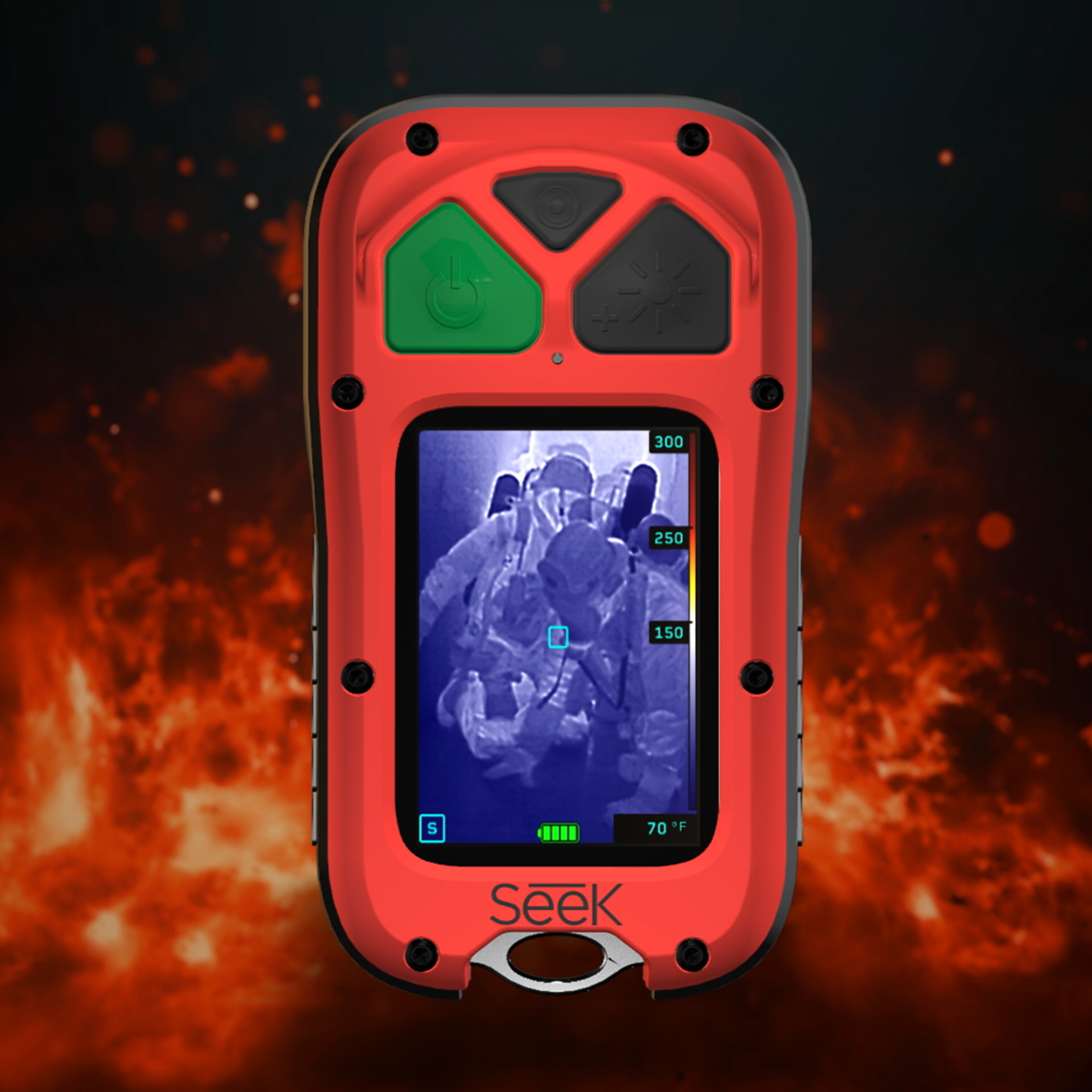

SURVEY MODE

with Spot Temp



ENQUIRIES

Whether you are a fire fighter searching where to purchase this equipment in your country or a supplier interested in distribution please use contact form below to send a message to FIRE-MAX.

We are now looking for partners to join FIRE-MAX Dealer Network and distribute this product. We actively support our export partners in their sales and marketing activities like presentations, promotions, exhibitions etc. We also organise seminars and training events on a regular basis. Interested in becoming a distributor? Apply now!

  • Pictures
  • Videos
    •







  • Technical specification
    • Thermal Sensor

      320 x 240

      Field of View

      57° x 42°

      Video Recording

      Yes

      Image Capture

      Yes

      Temperature Range

      -20° to 550°C

      Operating Temp (no limit)

      -20° to 85°C

      Operating Temp (5 min)

      150°C

      Operating Temp (1 min)

      260°C

      Display

      2.8” TFT with 320 x 240 screen resolution

      Frame Rate

      25 Hz FastFrame

      Thermal Sensitivity

      < 35 mK with SV1

      Imaging Modes

      3 imaging modes: FIRE TI Basic / FIRE TI Basic + / SURVEY

      Image Enhancements

      Mixed Gain, SV1 Image Optimisation

      IP Rating

      IP67

      Impact Resistance

      2 meter drop

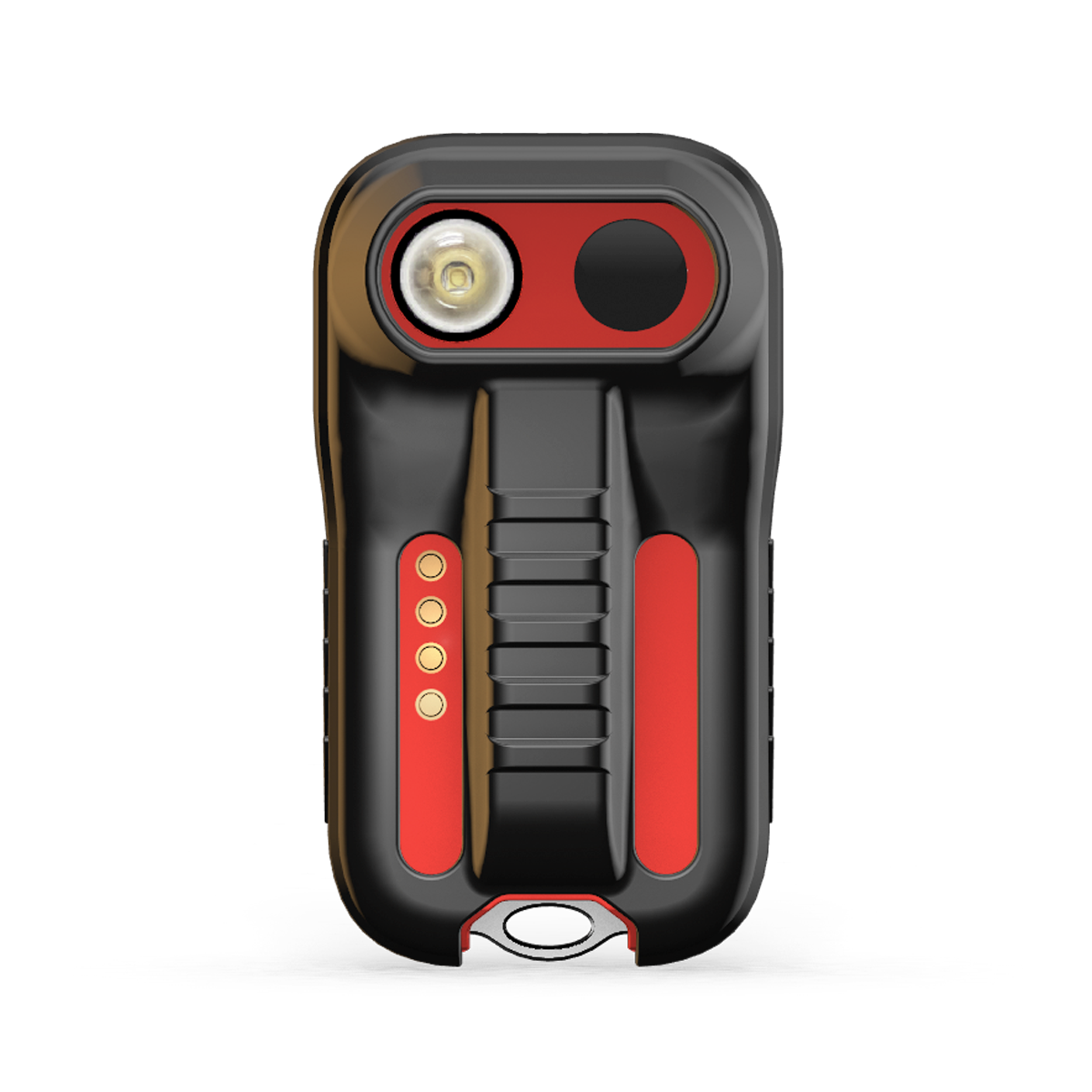

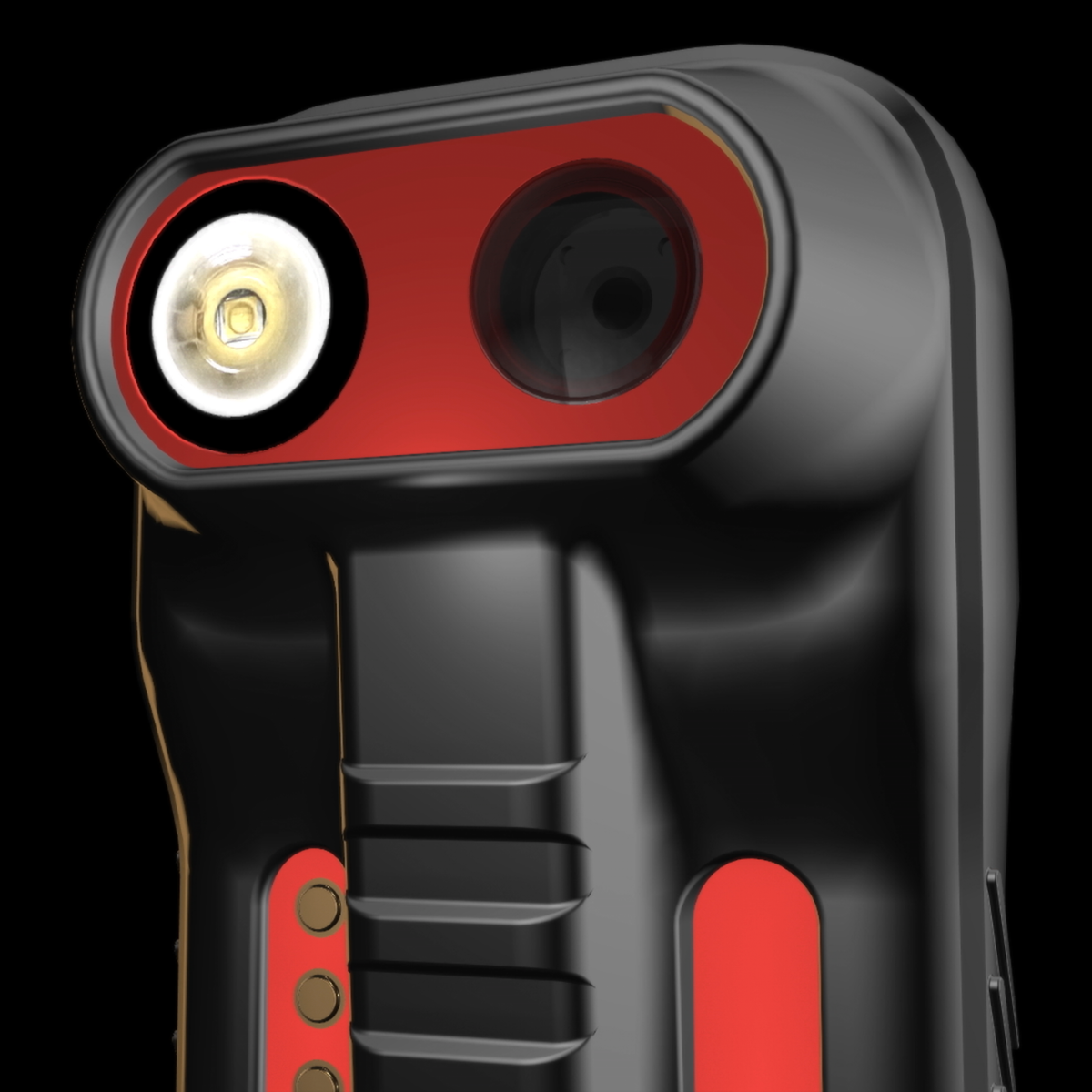

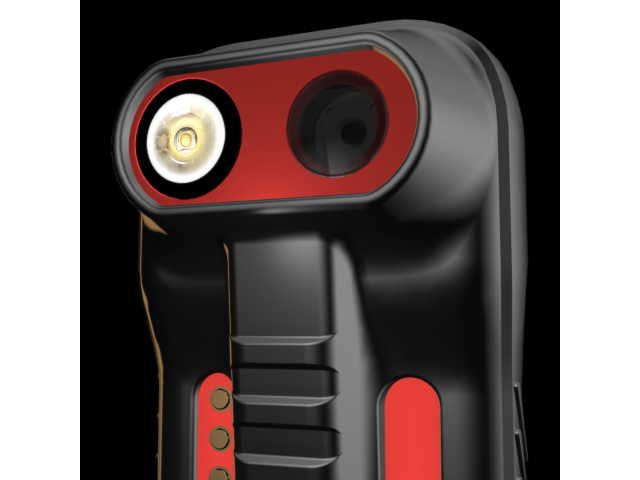

      Flashlight

      300 Lumen LED

      Germanium Window

      Yes

      Viewing Angle

      Ergonomic 90° viewing angle

      Size: H x W x D (mm)

      135 x 76 x 46

      Weight (grams)

      325

      Battery Life

      6 hours of thermal imaging without flashlight

  • Downloads

More in category Thermal Cameras:

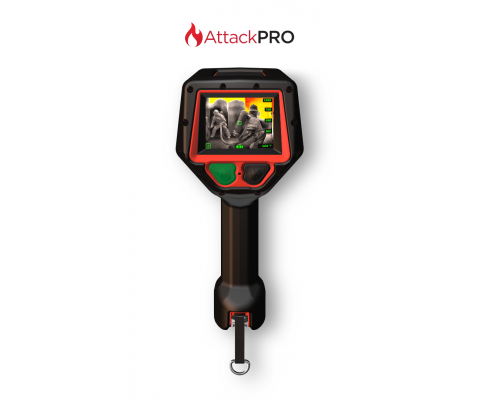

AttackPRO

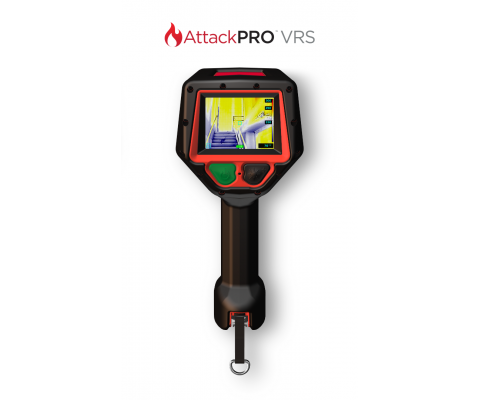

AttackPRO VRS
Reveal FirePRO X

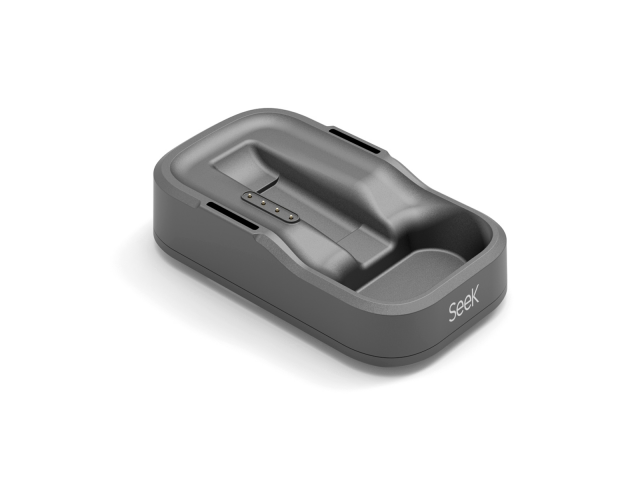

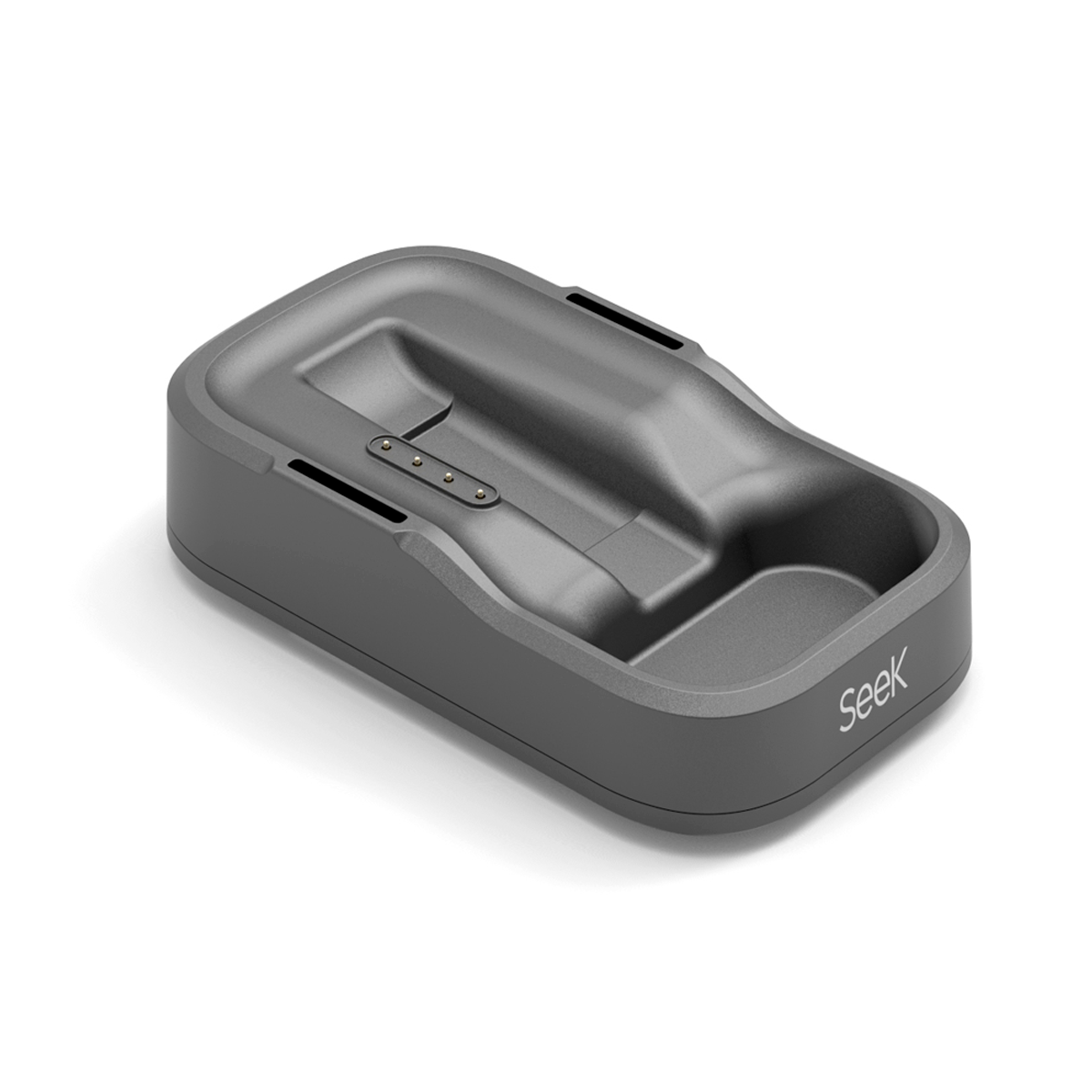

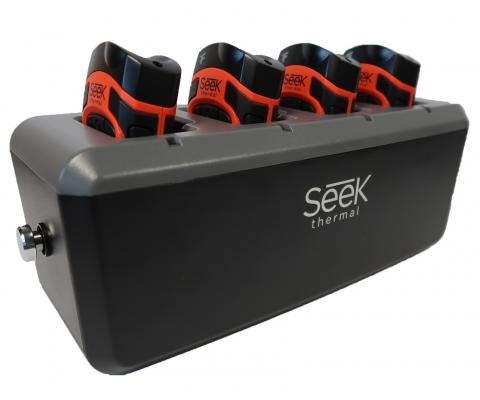

Multi-Charge Dock
