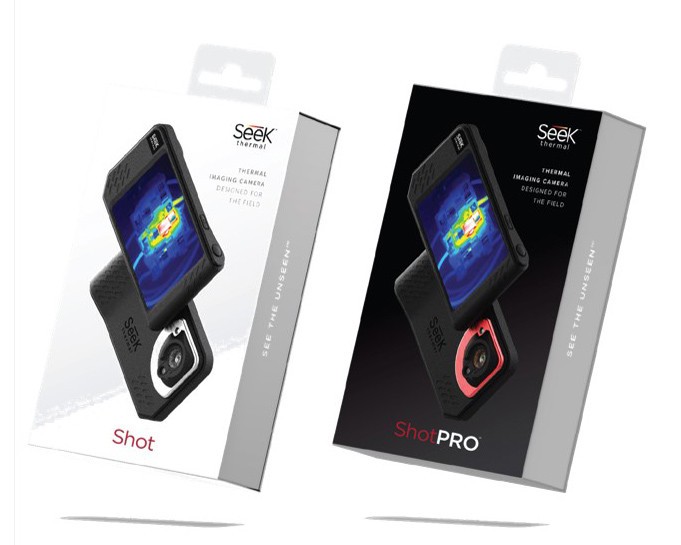

Seek Shot PRO
Affordable, high-resolution thermal imaging with SeekFusion™ Technology.
Seek ShotPRO enables you to discover, diagnose and share thermal images of leaks, shorts, and other inefficiencies in homes, buildings and facilities. Ergonomically designed with high-resolution thermal sensors and SeekFusion, Seek ShotPRO combinines thermal and visible imaging together for precise detail and accuracy. It is built to withstand the wear and tear of working in the field with its IP54 rating and extended battery life. Seek ShotPRO features a 3.5” color touchscreen with an intuitive interface, making problem detection fast and easy. Additionally, Seek ShotPRO lets you stream a live thermal view onto your mobile device via WiFi using the SeekView mobile app.
- Pictures
- Videos
- Technical specification
Thermal Sensor
320 x 240 (76,800 pixels) SeekFusion™ Yes Field of View 57 Degree FOV Temperature Range -40°F to 626°F (-40°C to 330°C) Frame Rate < 9 Hz Focus Fixed Focus Light/Flash Yes Display 3.5” Color Display (648 x 480 Resolution) Microbolometer Vanadium Oxide Thermal Sensitivity < 70 mK Spectral Range 7.5 – 14 Microns User Interface Intuitive Touch Screen Temp. Display Scale Fahrenheit, Celsius or Kelvin Color Palettes White, Black, Tyrian, Spectra, Iron, Prism, Amber & Hi Storage Media 4GB Internal Storage Battery Up to 4 Hours Thermal Imaging WiFi enabled. Connect & stream via SeekView app
- Benefits & Uses
- Easy-to-Use Interface
Diagnose problems on-the-spot and analyzes images on your device
Inspect Electrical Panels, Connections, and Fuses
Find electrical faults faster and with more confidence
Check Ventilation Systems for Proper Installation
Ensure grilles, registers, and diffusers are sealed for maximum efficiency
Spot Duct Leaks Invisible to the Human Eye
Easily scan a large ducting network to reveal the air leaks
Identify Inefficient Air Handlers
Diagnose faulty equipment and improve energy efficiency
Find Missing Insulation

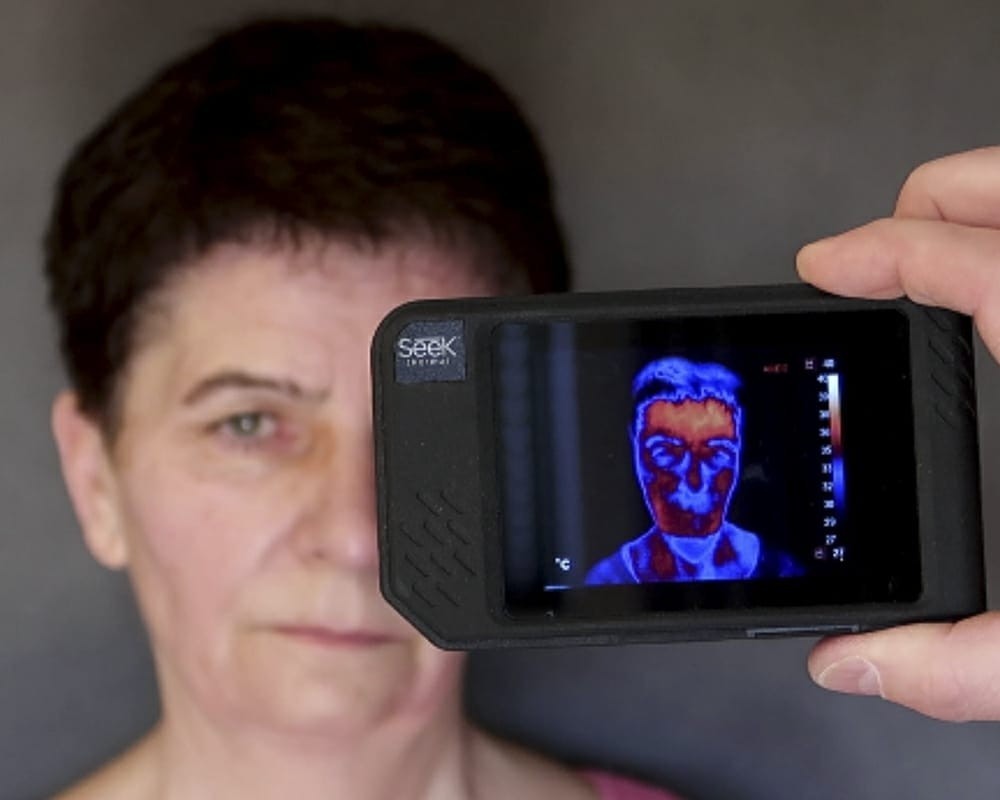

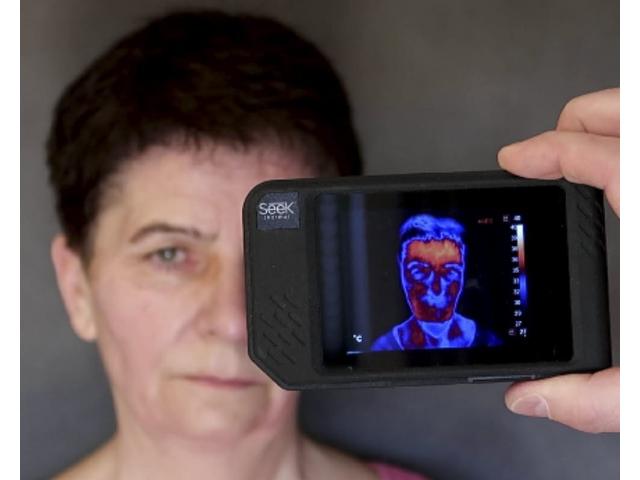

Easily find missing or poor-performing insulation in secondsElevated Body Temperature Detector
Fast, non-invasive way to detect elevated body temperature
- Downloads
