Seek Scan

SEEK SCAN detects people with virus infections by scanning for elevated body temperature (fever). It is dedicated for use at Temperature Screening Points especially those where high-volume people flow is expected:

  • Hospitals and Surgeries
  • Small, Medium & Large businesses
  • Office buildings
  • Public Institutions
  • Government Offices
  • Fire and Police Stations
  • Prisons and Arrests
  • Airports and transportation hubs like Bus and Train stations
  • Libraries and Cultural Centres
  • Venues, Theatres and Arenas
  • Logistics Centres
  • Power plants
  • Factories
  • Warehouses
  • Schools and Nurseries
  • Hotels
  • Restaurants

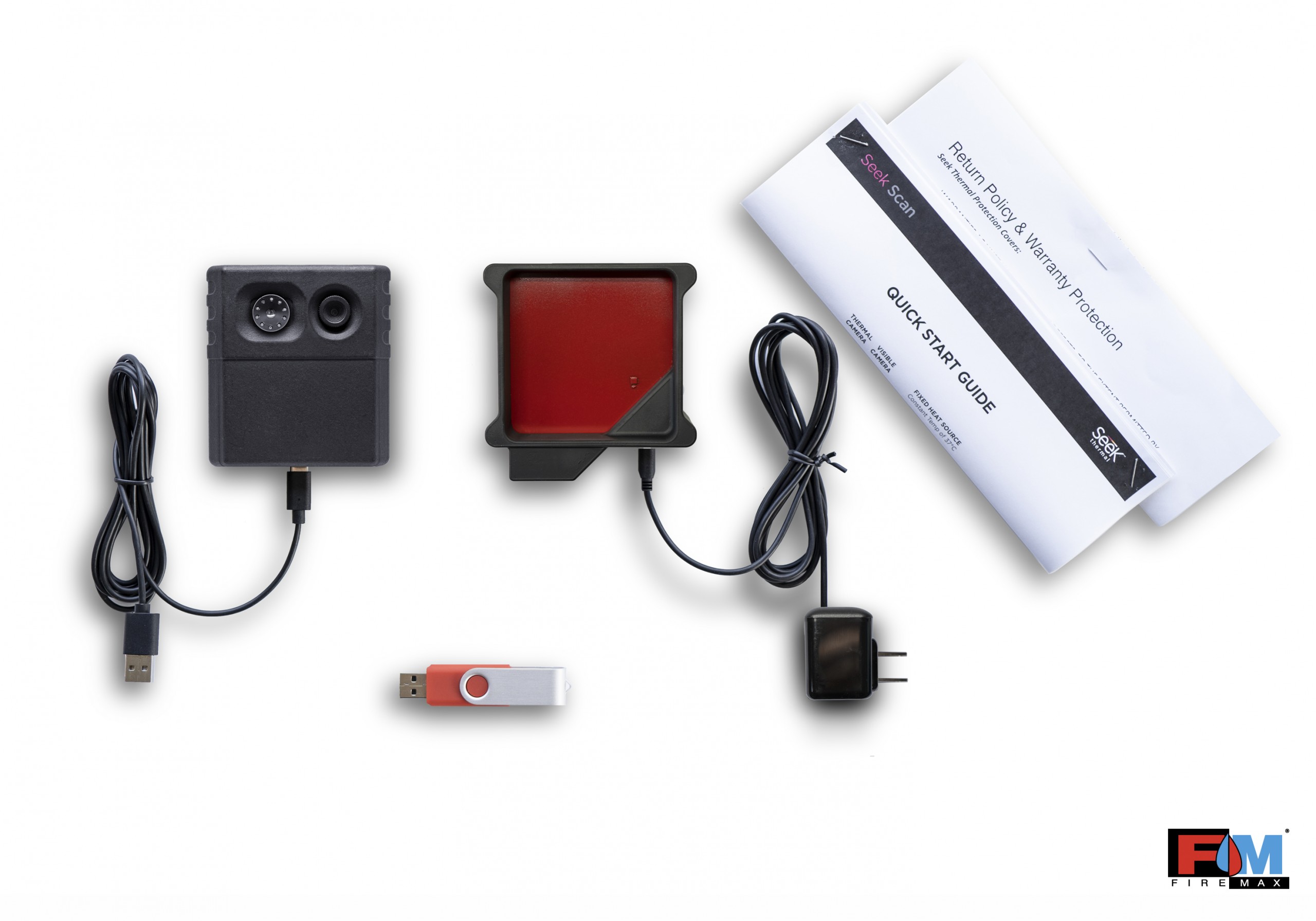

SEEK SCAN set consists of 2 devices:

  1. THERMAL CAMERA and VIDEO CAMERA combined in one box
  2. FIXED HEAT SOURCE which is a constant temperature reference device

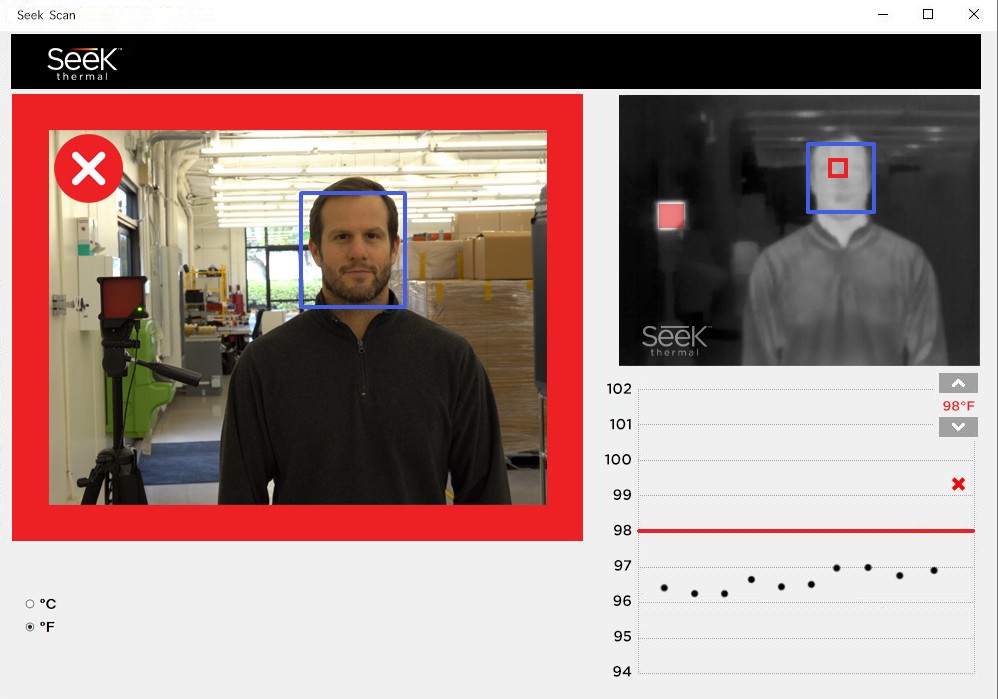

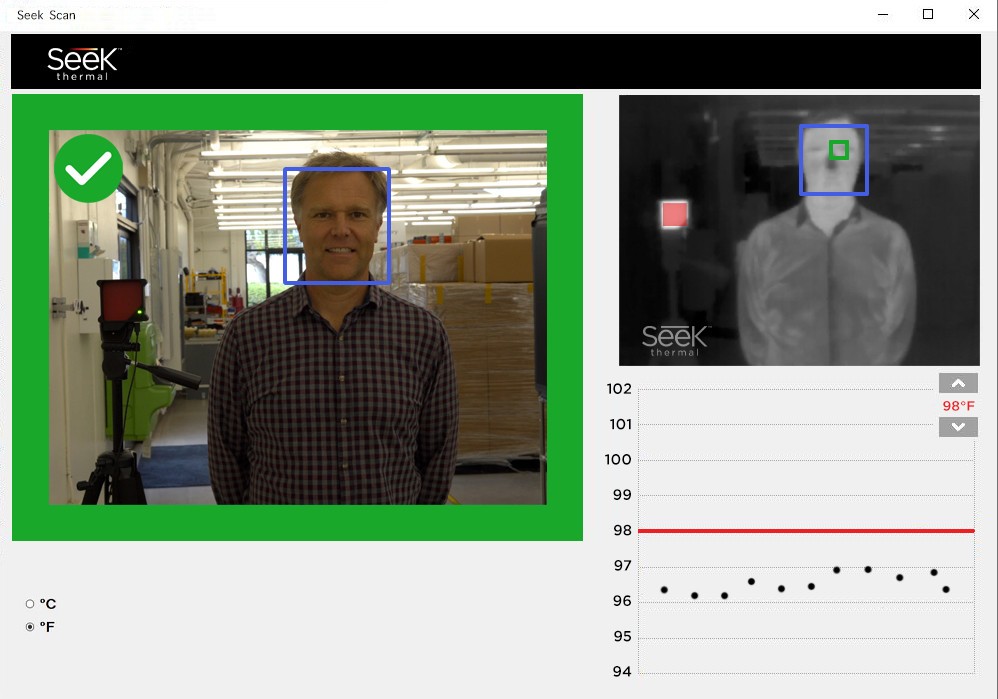

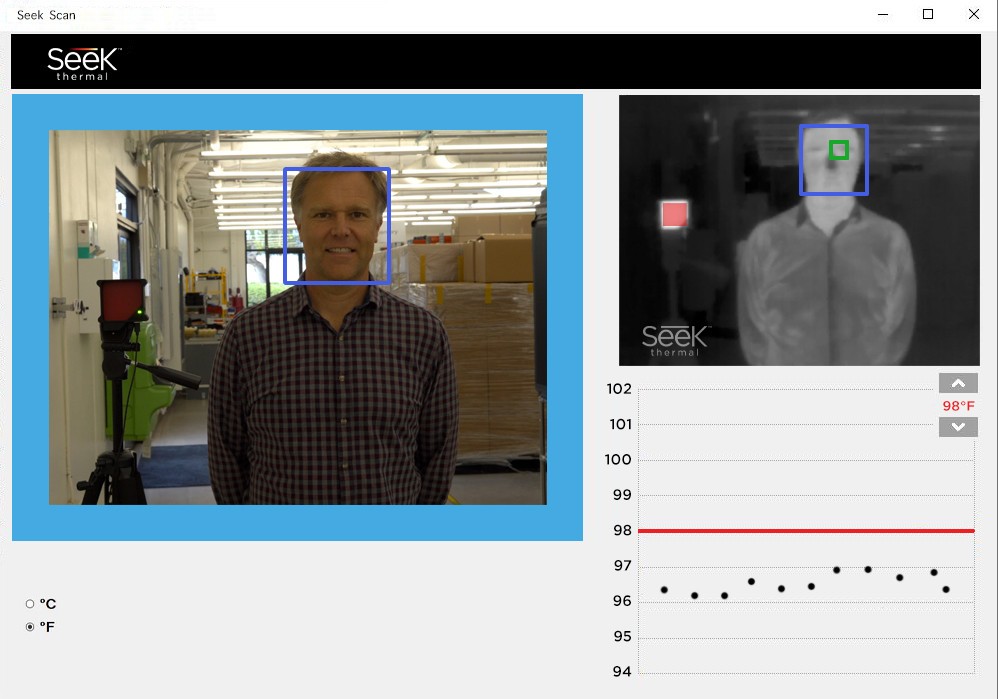

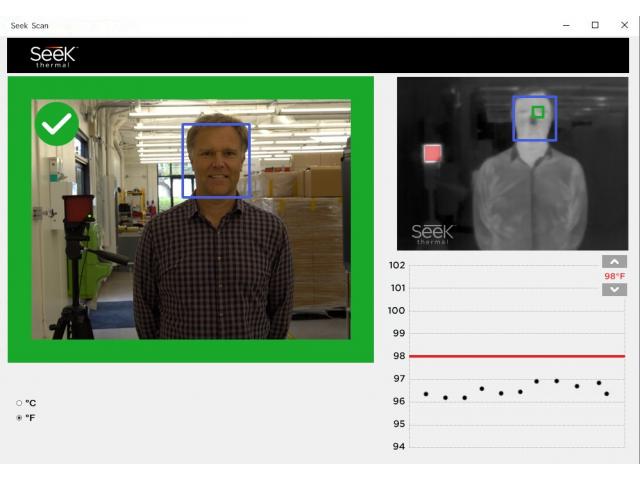

Unlike traditional screening methods SEEK SCAN enables social distancing and fully automatic operation. It scans and measures skin temperature once a human face is detected in the frame. High temperature i.e. fever triggers an alert.

SEEK SCAN also captures and keep the record of all the important screening data i.e. picture of the person being screened, their temperature and pass/fail alert.

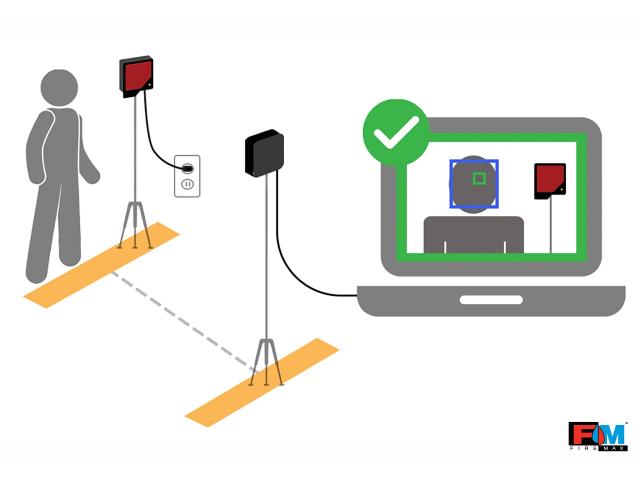

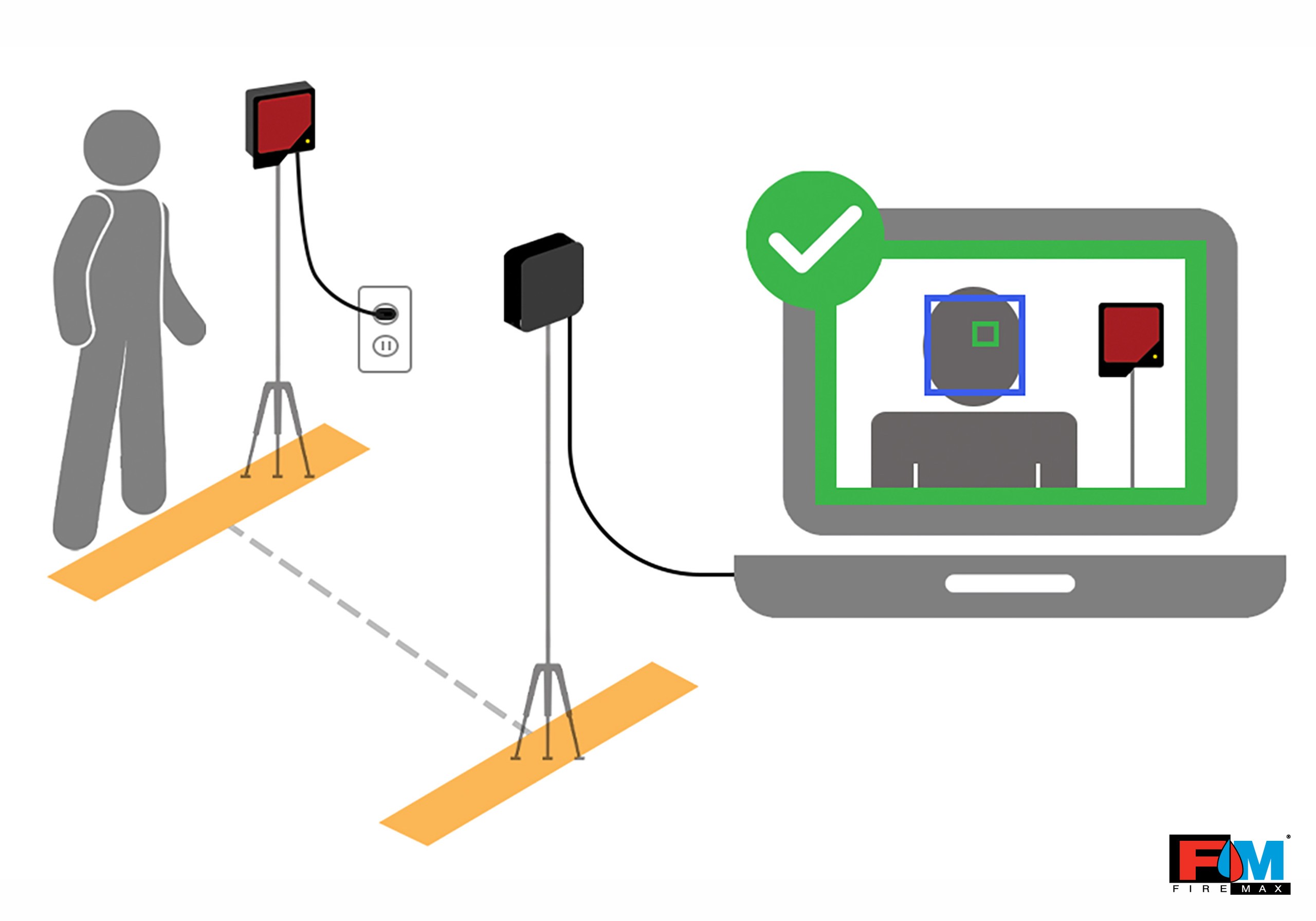

SEEK SCAN Fever Detection System is easy to use and can be set up in minutes using just 2 tripods and a Windows PC. Seek Scan can be installed in lobbies, hallways and other key access points to help businesses, institutions and venues create a safer environment for their workforce, customers, members and visitors.

SEEK SCAN is a simple, fast, automatic, accurate and cost-effective body temperature scanner designed to help prevent the rapid spread of the coronavirus or any other virus or disease in the future.

  • Pictures
  • Videos
    •

  • Technical specification
    • Camera Specifications
      Thermal Sensor Resolution 206 (h) x 156 (v)
      Visible Light Camera Resolution 1280 x 1024
      Horizontal / Vertical Field of View 35o (h) / 26o (v)
      Lens Focal Length / F-Number 4 mm / f/1.20
      Frame Rate < 9 Hz
      Power USB 5V (Plugs into Computer USB-A port)
      Dimension (D x S x W) 3 x 8 x 9 cm
      Weight 140 g

      Thermography Specifications
      Temperature Accuracy ± 0.5°F (0.3°C) between 96°F to 104°F (36°C to 40°C) @ 5 Feet (1.5 meters) Using Fixed Heat Source
      Sensor Sensitivity 40 mK (typical), <50 mK (max) @ 25°C (Post Signal Processing)

      Fixed Heat Source Specifications
      Constant Temperature Emits a constant reference temperature
      Power 110V to 220V 50/60Hz (Plugs into Wall Outlet)
      Dimensions (L x W x H) 3 x 8 x 9,5 cm
      Weight 80 g

      System Specifications
      System Requirements Supported Operating Systems: Windows 7 and 10
      Operating Temperature Optimal temperature accuracy in conditions below 106°F (40°C) ambient
      Scan Time 1 Second
      Image Capture Format JPEG
      Data Capture Event Trigger with JPEG and Thermal Spot Temperature
      Data Output Ask your sales representative for options to integrate Seek Scan data with other systems
  • Downloads

More in category Thermal Cameras:

Reveal FirePRO

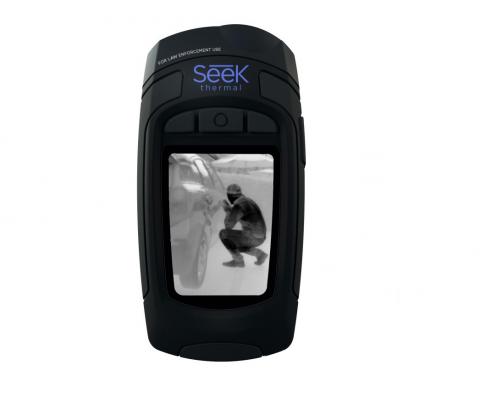

Reveal ShieldPRO
