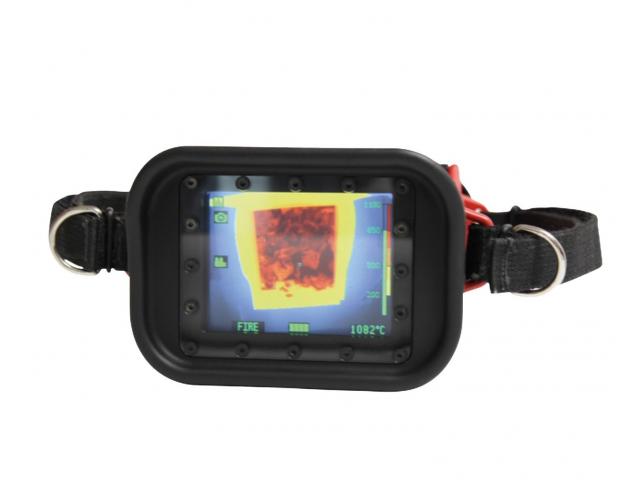

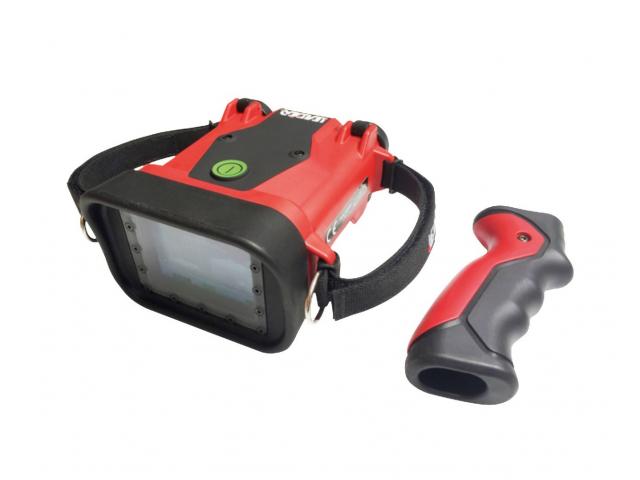

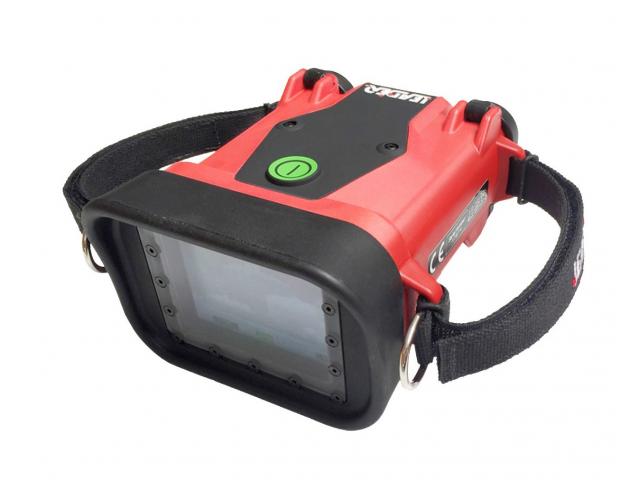

Leader TIC 3.1

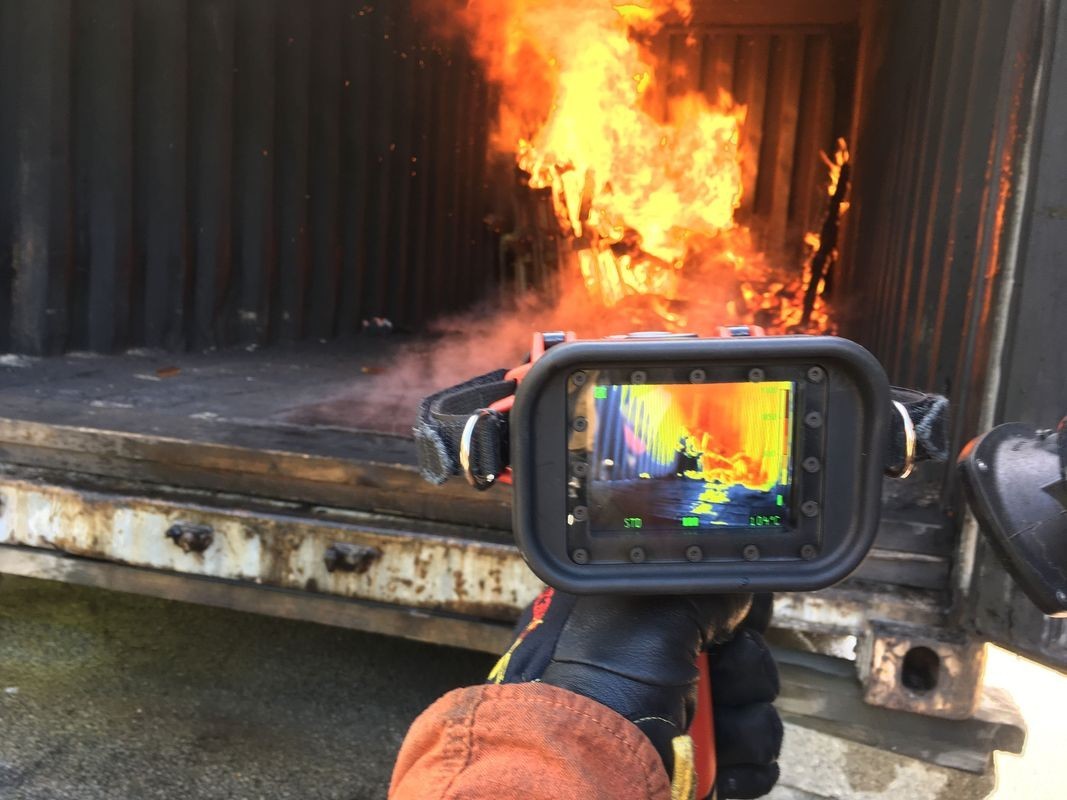

Efficient and simple because of its unique action button, NFPA Leader TIC 3.1X thermal imaging camera is particularly suitable for indoor fire attacks.

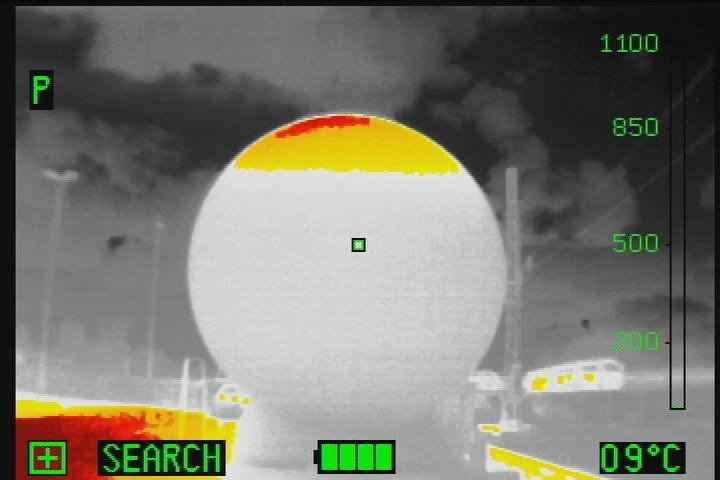

Compact, lightweight and incorporating a wide range of temperature measurement (-40°C to +1150°C), it was designed for ease of use. Ideal for fire operations, search for missing persons and areas on fire.
Resistant to fire, robust, with germanium window to protect the internal electronics, using a wide-angle lens (H 51° V 40°) and an ultra-sensitive infrared sensor (17μ Silicon Amorphous aSi 384 x 288), Leader TIC 3.1X confirms its status of thermal imaging camera for fire attack.
For thermal cameras that have Video or Picture function, a wireless transmission kit is available as an option to be plugged for streaming live the images on 3 digital devices simultaneously (mobile, tablet, computer)! It is useful for trainings or special operations.

Certifications: CE and NFPA1801:2018 and ISA12.12.01 / CSA C22.2 N°213
  • Pictures
  • Videos
  • Technical specification
    • Type Firefighting camera
      Dimensions 170 x 148 x 93 mm
      Weight 938g with 2 batteries

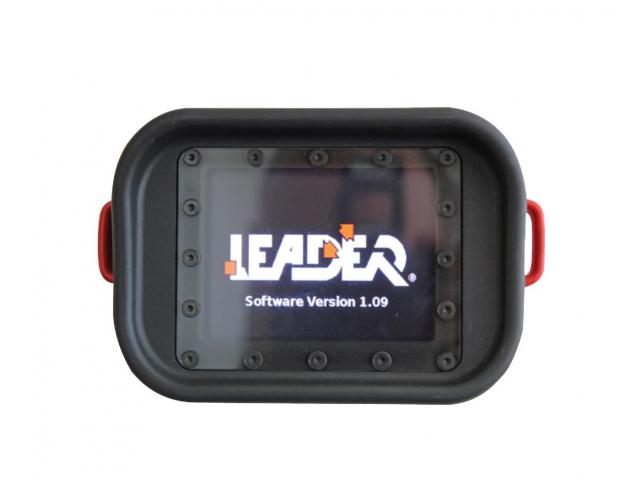

      Screen 3,5"

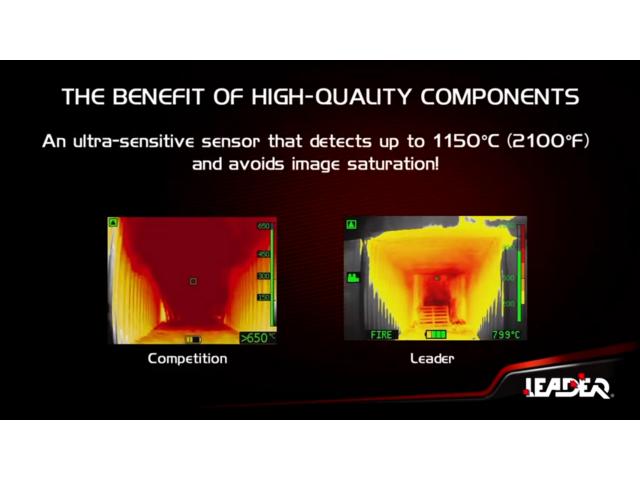

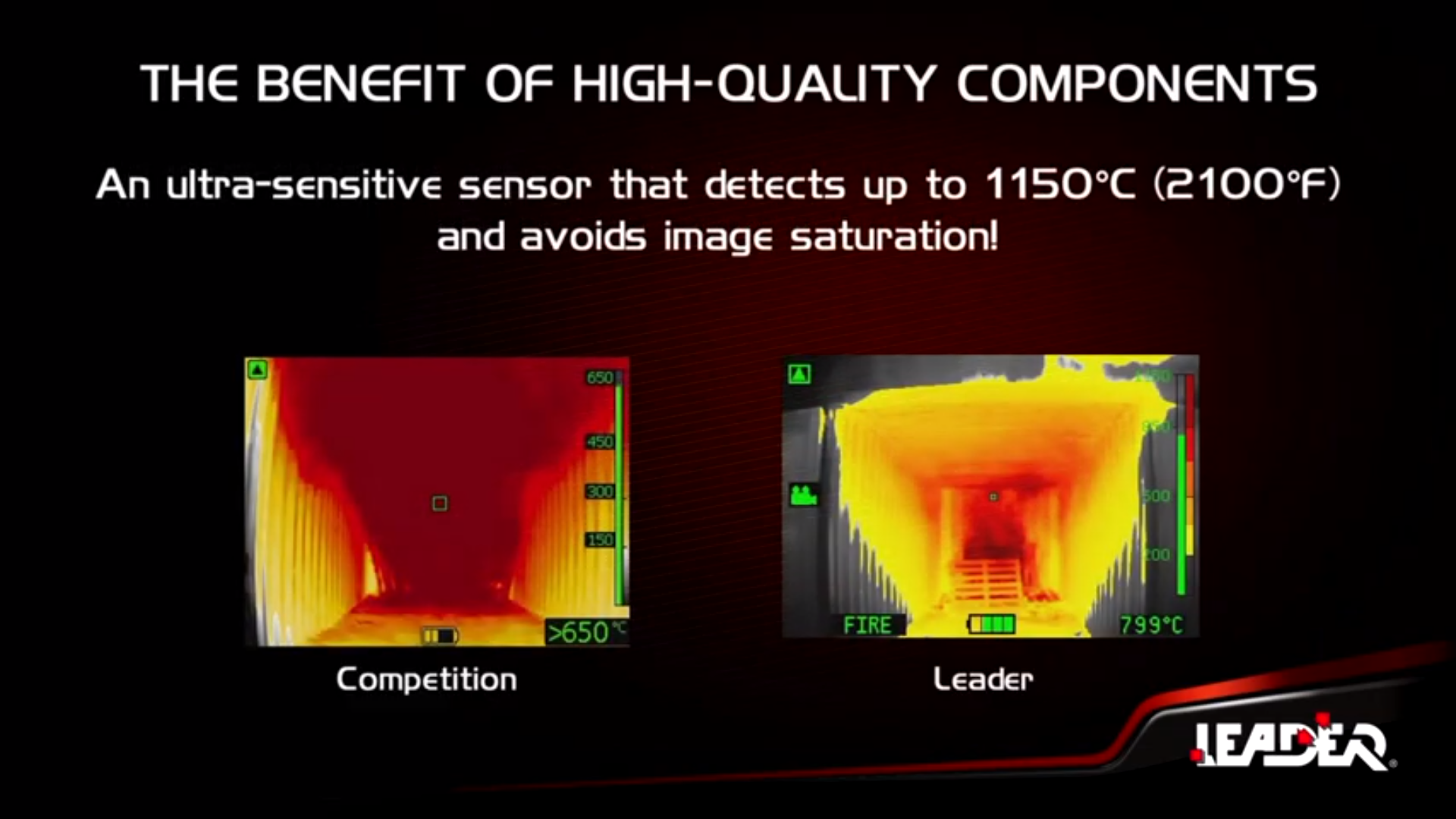

      Range of T°C -40°C to +1150°C

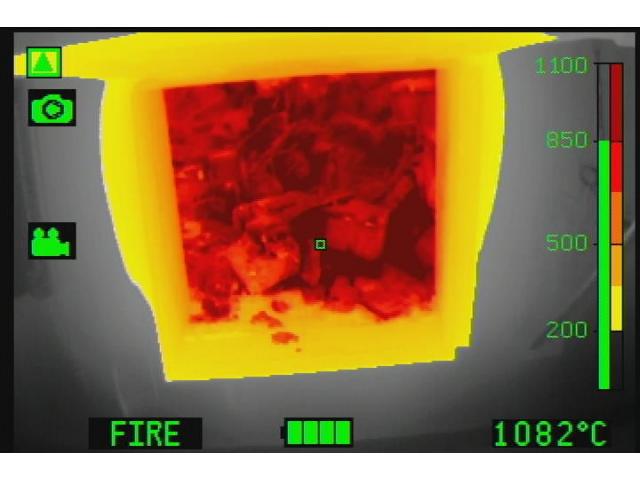

      Colouring 1 mode (Fire)
      Functions ON/OFF, Automatic video recording at start-up (option)
      Batteries LiFePO4 designed for high T°C (fire safety)
      Autonomy Up to 8h with 2 batteries
      Protection Germanium lens to protect the optical system
      Start Less than 5 sec.

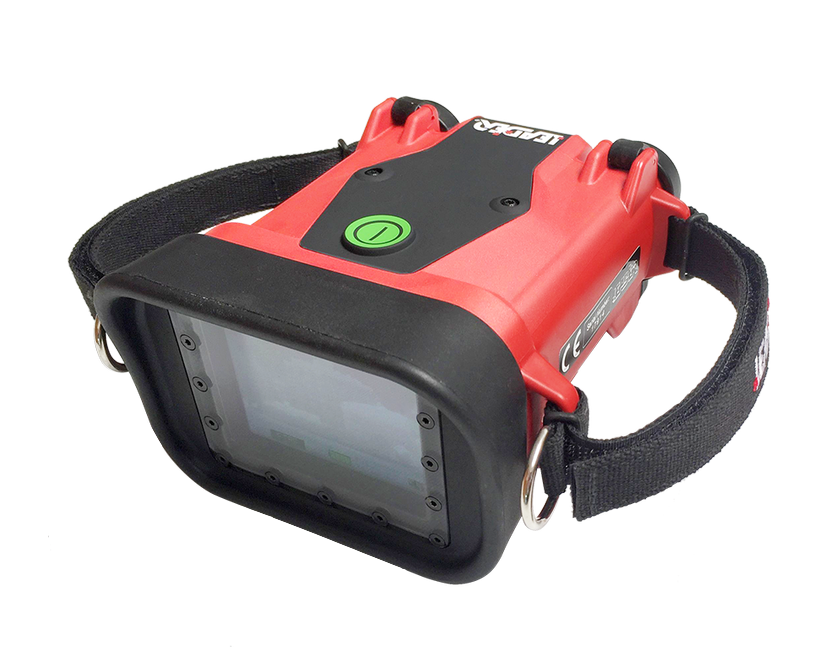

      Button x1 large-sized for use with gloves
      Sensor Type 17μ Amorphous Silicon aSi
      Sensor Resolution 384 x 288
      Warranty Camera 5 years, Batteries 6 years, Sensor 10 years
      NFPA NFPA1801:2018 certified



  • Downloads
