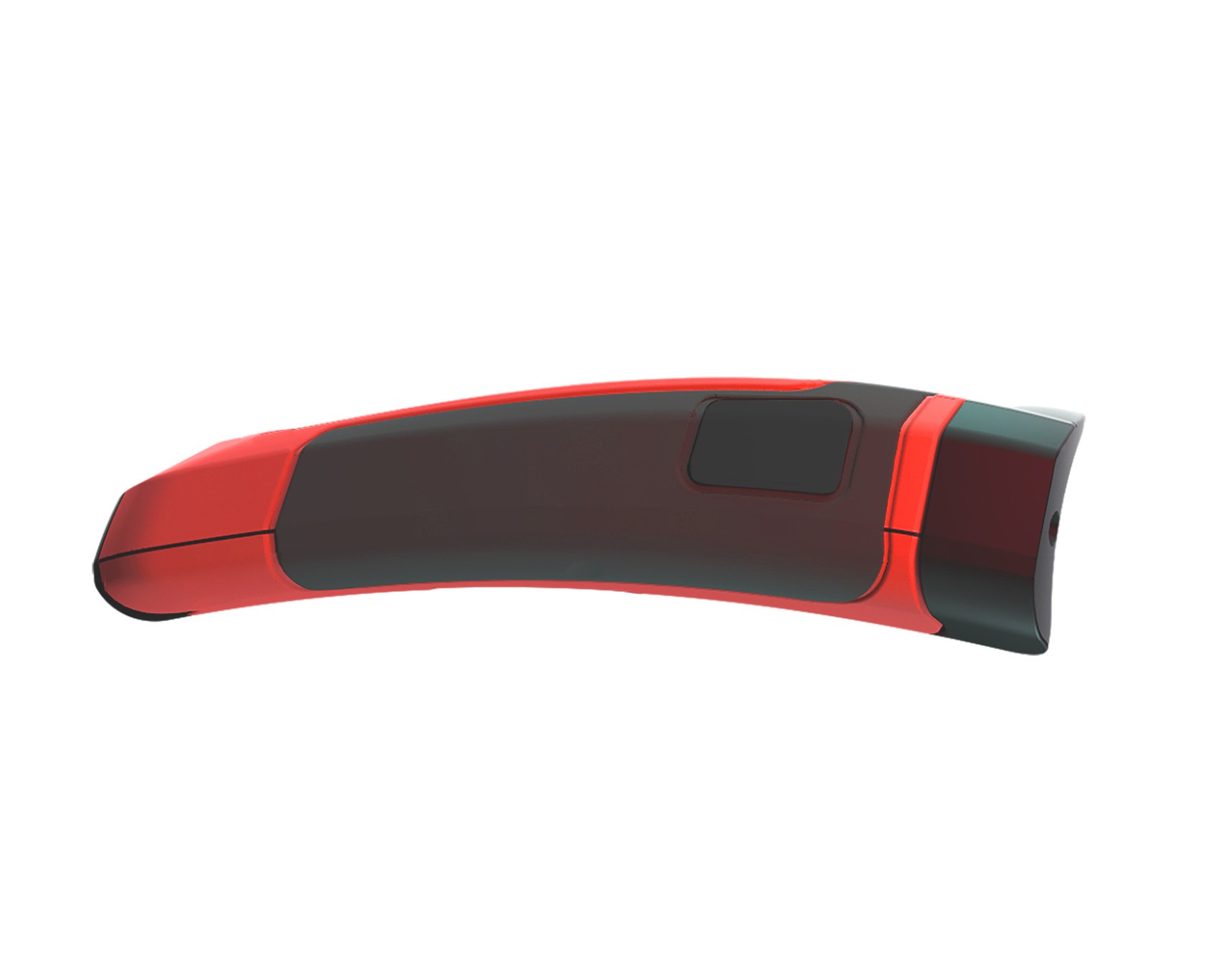

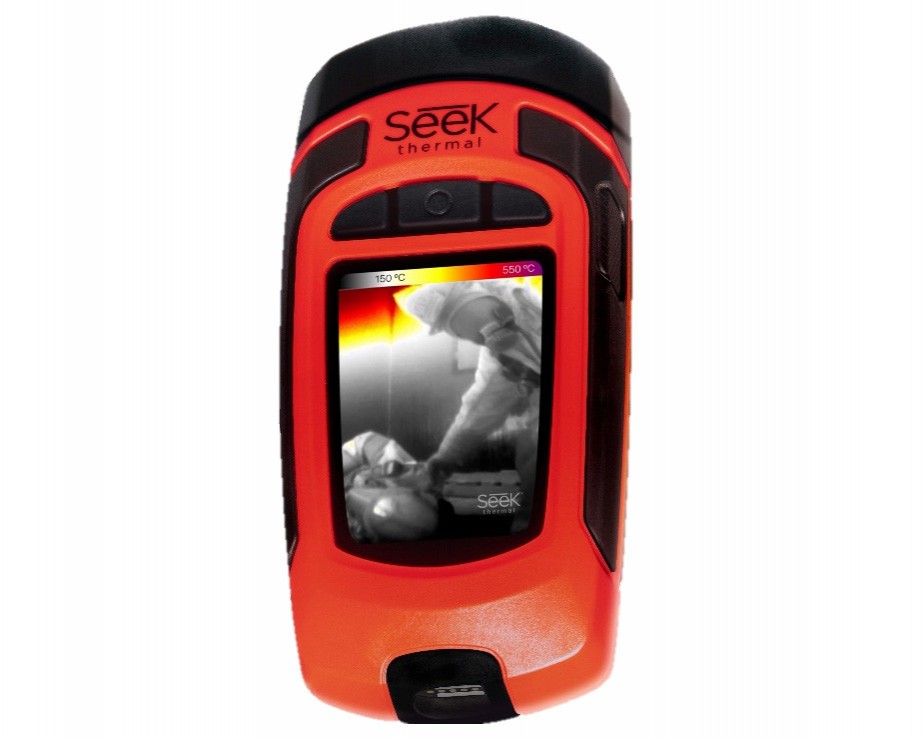

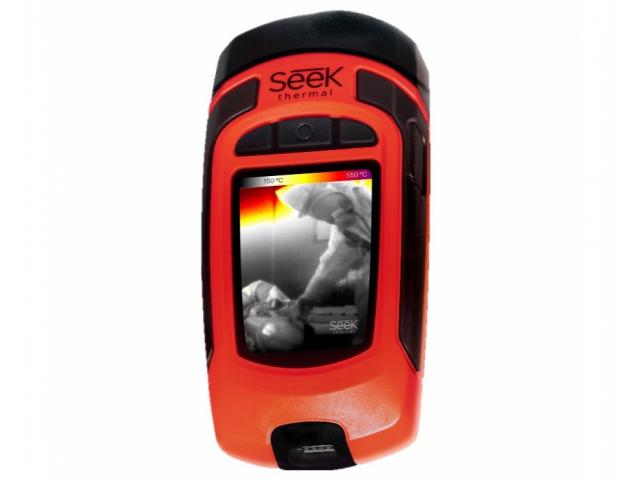

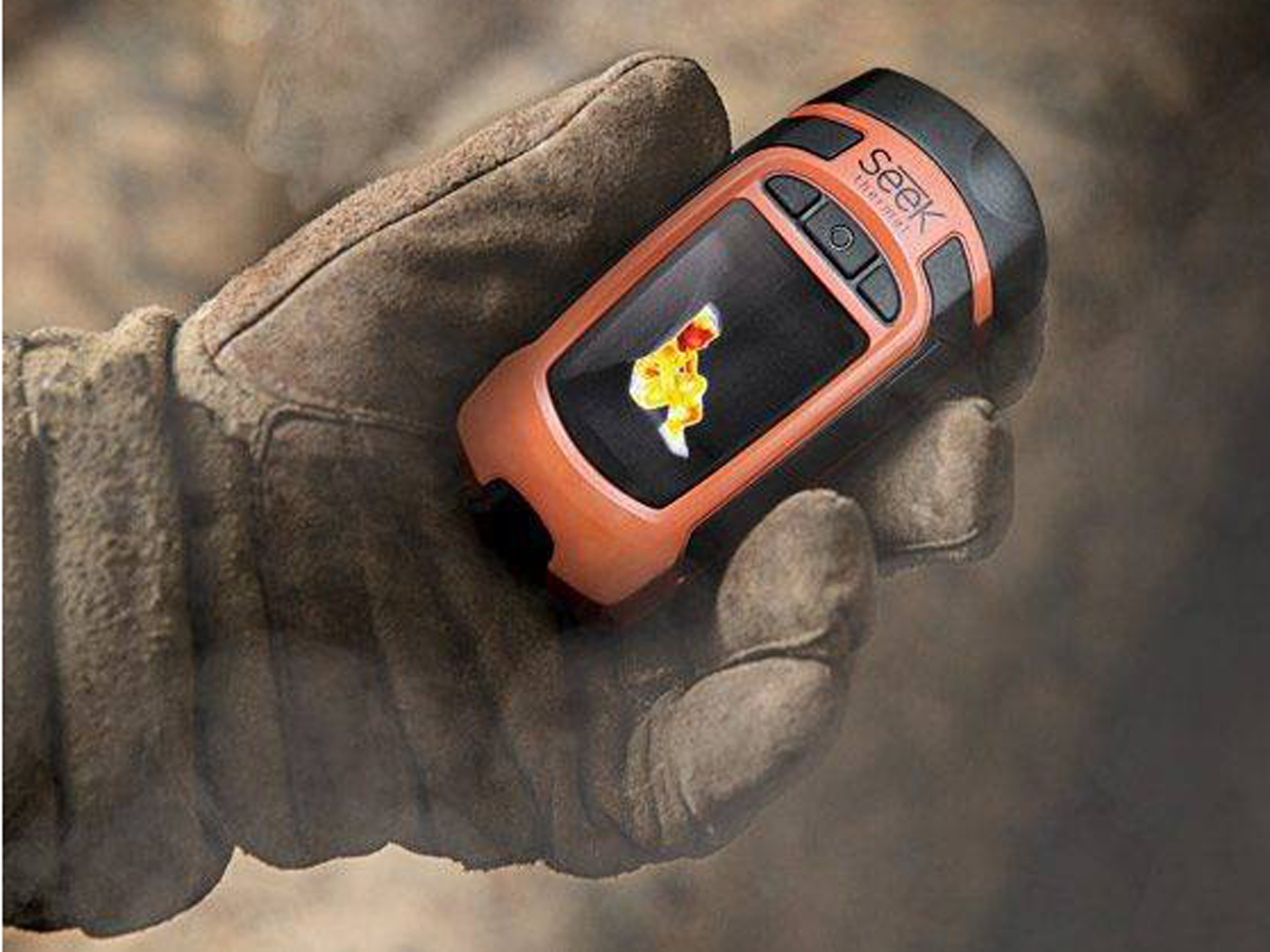

Reveal FirePRO X

The smallest, lightest, durable and affordable personal thermal imaging camera for firefighting. Easy to carry attached to the firefighter’s uniform. Designed to be useful for every firefighter in every situation. Reveal FirePRO X is easy to use thanks to intuitive software to help you fight fires smarter, safer and quicker. The camera delivers 320 x 240 high-resolution and smooth thermal imaging. And, when you need it, a powerful 300-lumen LED light is available at the touch of a button. Reveal FirePRO X helps to find hot spots and heartbeats faster when every second counts. See through smoke, visualise your plan, and execute. Designed and Manufactured in Santa Barbara, California with Global Components.
  • Firefighter’s affordable personal rescue and situation awareness tool to: evaluate the situation, build plan of action, or search for victims or fellow firefighters
  • Practical personal thermal camera complementing larger, higher-specs and more expensive tactical thermal cameras
  • Three imaging modes designed for different fire scenarios
  • Original design for every riding position
  • Comfortable to use in crawling position and to look under beds, around corners, inspect floors during roof operations and ceilings and above spaces
  • Smallest and lightest firefighting Thermal Imaging Camera available for personal carry
  • Dedicated retractable lanyard attachment accessory available
  • The fastest growing personal firefighting TIC in the world
  • Easy to operate
  • The only 320 x 240 high-resolution TIC below € 1.000
  • Fast Frame 18Hz refresh rate for improved scanning, perception and reaction time
  • Up to 550°C temperature detection range
  • Heat resistant up to 107°C
  • Powerful flashlight with EMERGENCY mode (300 Lumen)
  • IP67 waterproof
  • Increase speed and accuracy of primary search and rescue
  • Improve Firefighter's safety
  • Increase situational awareness and see all crew members

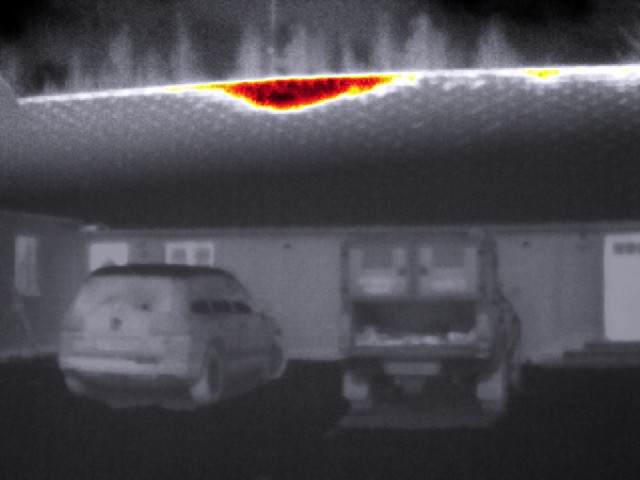

  • Be certain the fire is out when you leave
  • Valuable beyond fire calls: Hazmat, Search & Rescue, Accident Investigation
  • A personal thermal imager that firefighters will actually use

FIRE-MAX is now looking for partners to join its Dealer Network and distribute Reveal FirePRO firefighting personal thermal camera. We actively support our export partners in their sales and marketing activities like presentations, promotions, exhibitions etc. We also organise seminars and training events on a regular basis.

Interested in becoming a distributor? Apply now via contact form below!

  • Pictures
  • Videos




  • Technical specification
    • Thermal Sensor

      320 x 240 (76,800 pixels)
      Detection Distance 0,3 to 550 m

      Field of View

      Wide, 32 Degree FOV
      Temperature Range -4 to 1,202F (-20 to 650C)
      Operating Temp -4 to 140F (-20 to 60C) No time limit

      Operating Temp (10min)

      -4 to 185F (-20 to 85C) Up to 10 minutes

      Operating Temp (2min)

      -4 to 225F (-20 to 107C) Up to 2 minutes

      Frame Rate

      >15 Hz FastFrame

      IP Rating

      IP67 Waterproof


      300 Lumen LED
      Display 2.4” Color with Corning® Gorilla® Glass

      Thermal Sensitivity

      < 70 mK

      User Interface

      Self-Contained Device with 3 Button Navigation

      Temp. Display Scale

      Fahrenheit or Celsius

      Color Filters

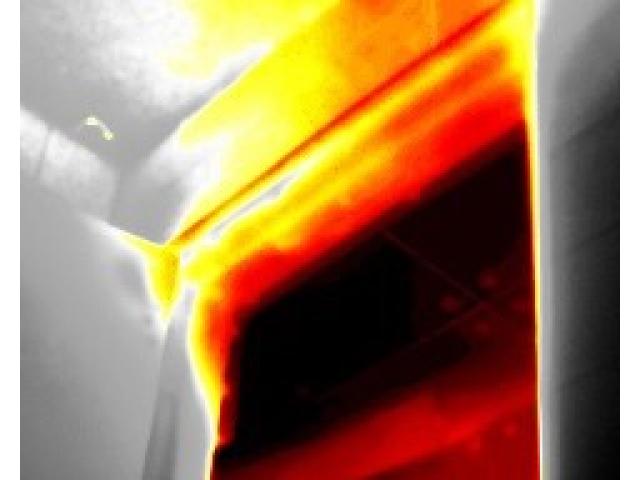

      3 Options (FIRE, SURVEY, & COLOR)
      Storage Media 4GB Internal Drive (>4,000 images)
      Battery Up to 3.5 Hours Thermal Imaging

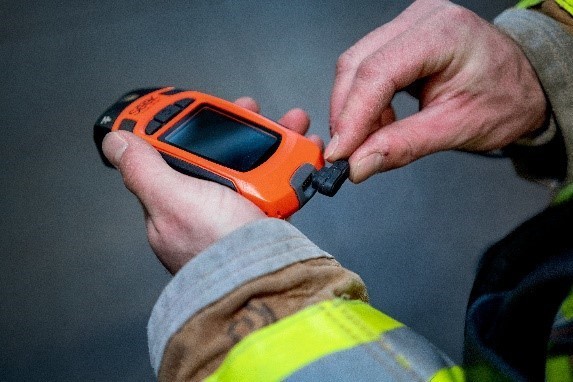

      Charging Magnetic charge port with sealed contacts
      - Heavy-Duty Retractable Lanyard

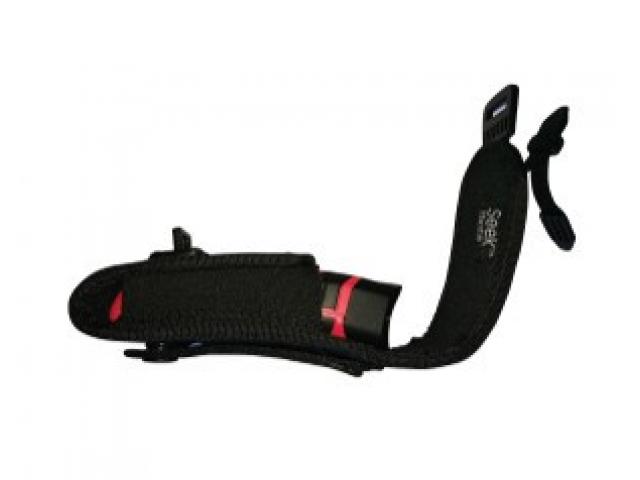

      - Reveal Tactical Holster with clip or Reveal Holster with Velcro

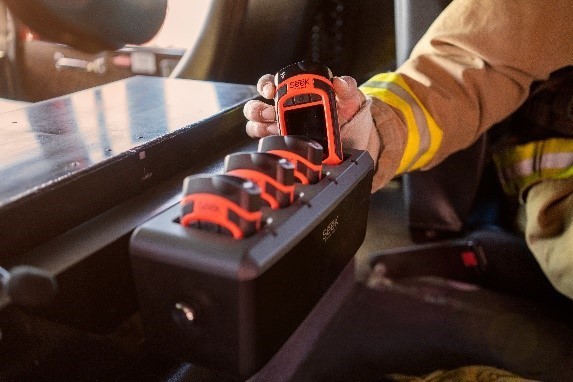

      - Multi-charger
